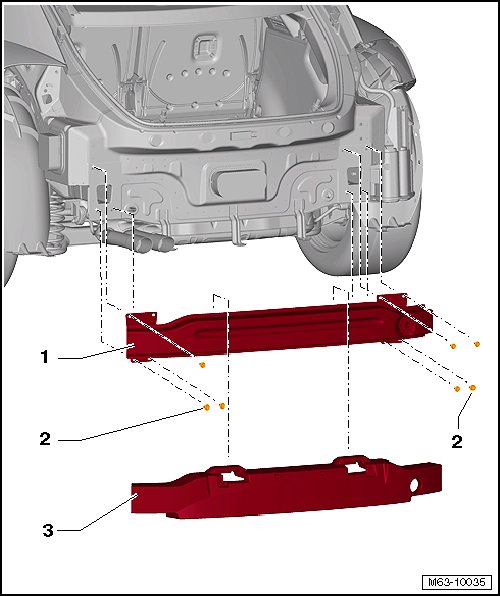

Rear Bumper Impact Member Assembly Overview

Rear Bumper Impact Member Assembly Overview






1 Rear bumper carrier

2 Bolt

• 3 left pieces and 4 right pieces

• Tightening specification: 20 Nm

3 Foam piece

• Self-adhesive

• Not installed in all models
