Front Bumper Cover Assembly Overview

Front Bumper Cover Assembly Overview

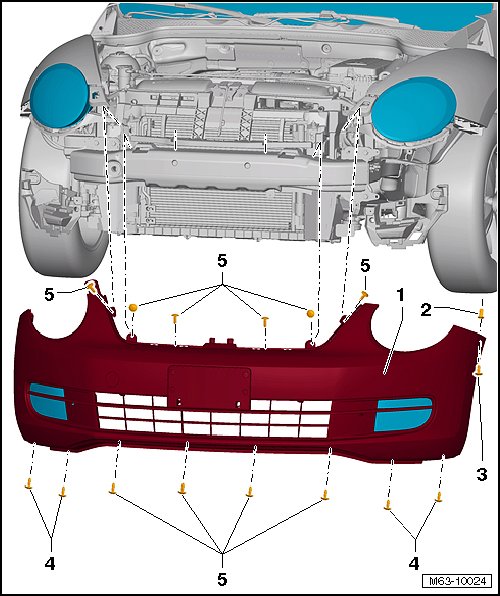

• Depending on model version, there are minor differences in the front bumper covers.






1 Front bumper cover

• PP/EPDM material

• Removing and Installing, refer to => [ Front Bumper Cover ] Front Bumper Cover

2 Expanding nut

• 1 on each side

• Replace if damaged

3 Bolt

• 1 on each side

• Pointing upward

• Tightening specification: 2 Nm

4 Bolt

• 2 on each side

• Tightening specification: 2 Nm

• Attached to the wheel housing liner

5 Bolt

• 4 bolts from below

• 6 pieces from above

• Tightening specification: 2 Nm

• Attached to the lock carrier
