Amplifier: Service and Repair

Amplifier (R12)

The amplifier is under the left front seat.

• Switch off the ignition and all electrical consumers.

• Remove the key.

Removing

- Move the left front seat into its highest position and the move it all the back.

- Remove the lower cover - arrow - from the seat.

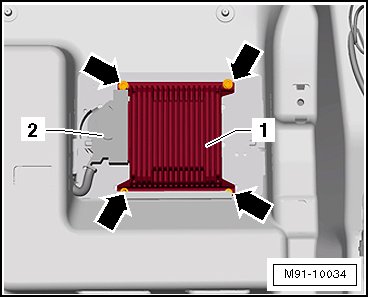

- Remove the screws - arrows - from the amplifier - 1 -.






- Disconnect the connector - 2 - from the amplifier - 1 -.

- Remove the amplifier (R12).

Installing

Further installation is in the reverse sequence to removal.

Read the measured values. Refer to => [ Amplifier (R12), Reading Measured Values ] Testing and Inspection.

Tightening specifications, refer to => [ Speakers Overview ] Speakers Overview.
