Rear Window Wiper System Overview

Rear Window Wiper System Overview

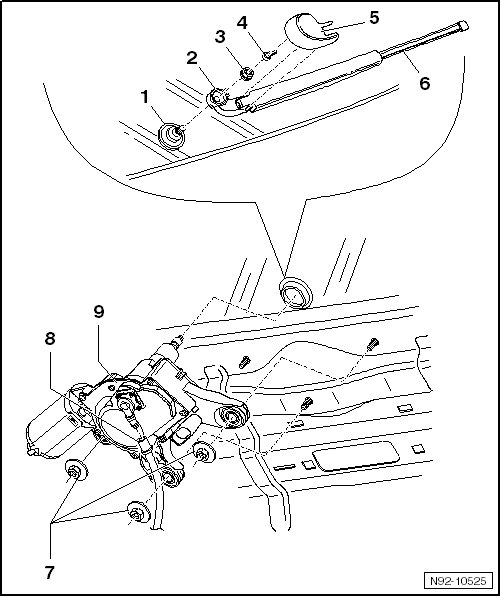

1 Rubber Seal Inside The Rear Window

2 Wiper Arm

• Removing and installing, refer to => [ Rear Window Wiper ] Rear Window Wiper.

• Adjusting park position, refer to => [ Rear Window Wiper Blade Park Position, Adjusting ] Rear Window Wiper Blade Park Position, Adjusting.

3 Wiper Arm Nut On Wiper Arm Shaft

• 12 Nm

4 Spray Nozzle For Rear Window Washer System

• Removing and installing, refer to => [ Rear Window Spray Nozzle ] Rear Window Spray Nozzle.

5 Cap

6 Windshield Wiper

• Removing and installing, refer to => [ Rear Wiper Blade ] Rear Wiper Blade.

7 Wiper Motor Nuts To Rear Lid

• 8 Nm

8 Windshield Washer Hose Connection

9 Rear Window Wiper Motor (V12)

• Removing and installing, refer to => [ Rear Window Wiper Motor (V12) ] Rear Window Wiper Motor (V12).
