Overview, Coupling Stations Inside The Engine Compartment

Wiring harness connector stations and connectors

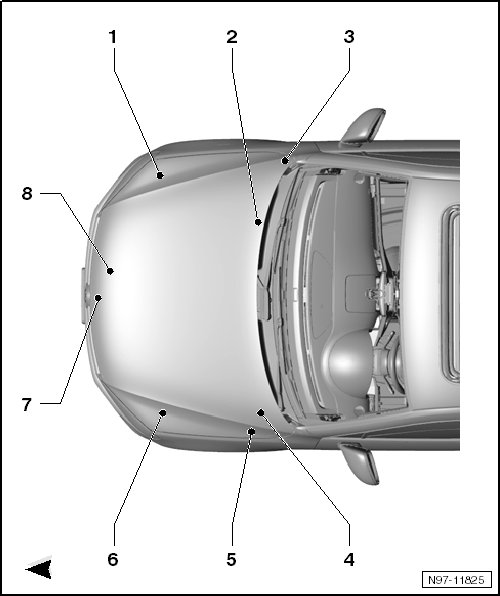

Overview, coupling stations inside the engine compartment







1 - Front bumper coupling station -T14c-

1 - Front camera coupling station -T5f-

2 - Coupling station for hybrid system power electronics -T14f-

3 - Heated washer jet coupling station -T4dy-

4 - E-box coupling station, -T6a-, -T6b-, -T6as-, -T6at-, -T10b-, -T10c-, -T10d-, T10e-, -T17e-, -T17f-, -T17g-, -T17j-, -T17k-
• Component location => [ Coupling stations, E-box ] Coupling Stations, E-box
• Connector assignment => [ Pin Arrangements ] Coupling Stations, E-box

5 - Coupling stations inside the wheel housing, -T4g-, -T6ai-, -T2em-, -T4l-
• Component location => [ Coupling stations inside the wheel housing ] Coupling Stations Inside The Wheel Housing

6 - Hood contact switch coupling station -T14b-

7 - Hood contact switch coupling station -T4w-
• Component location => [ Coupling station, hood contact switch ] Coupling Station, Hood Contact Switch

8 - Radiator fan coupling station -T4be-
• Component location => [ Connector station coolant Fan ] Connector Station Coolant Fan
