Coupling Stations On The Roof







Wiring harness connector stations and connectors

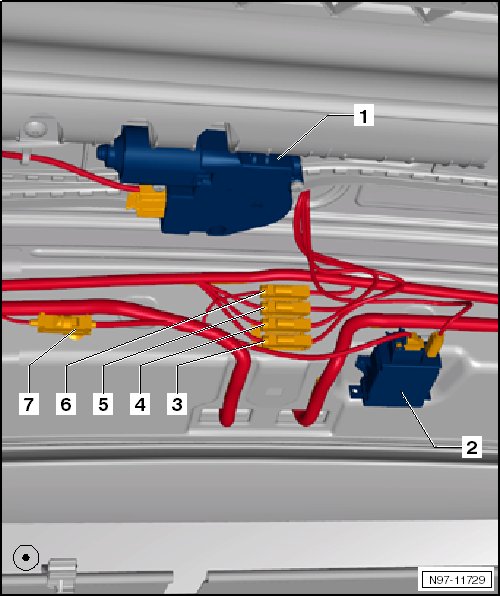

Coupling stations on the roof







1 - Roof shade control module -J394-

2 - Auxiliary heater radio receiver -R64-

3 - GPS antenna (navigation system)

4 - SDARS antenna (satellite reception)

5 - GSM antenna (telephone)

6 - 2-pin connector -T2if-

7 - 5-pin connector -T5k-
