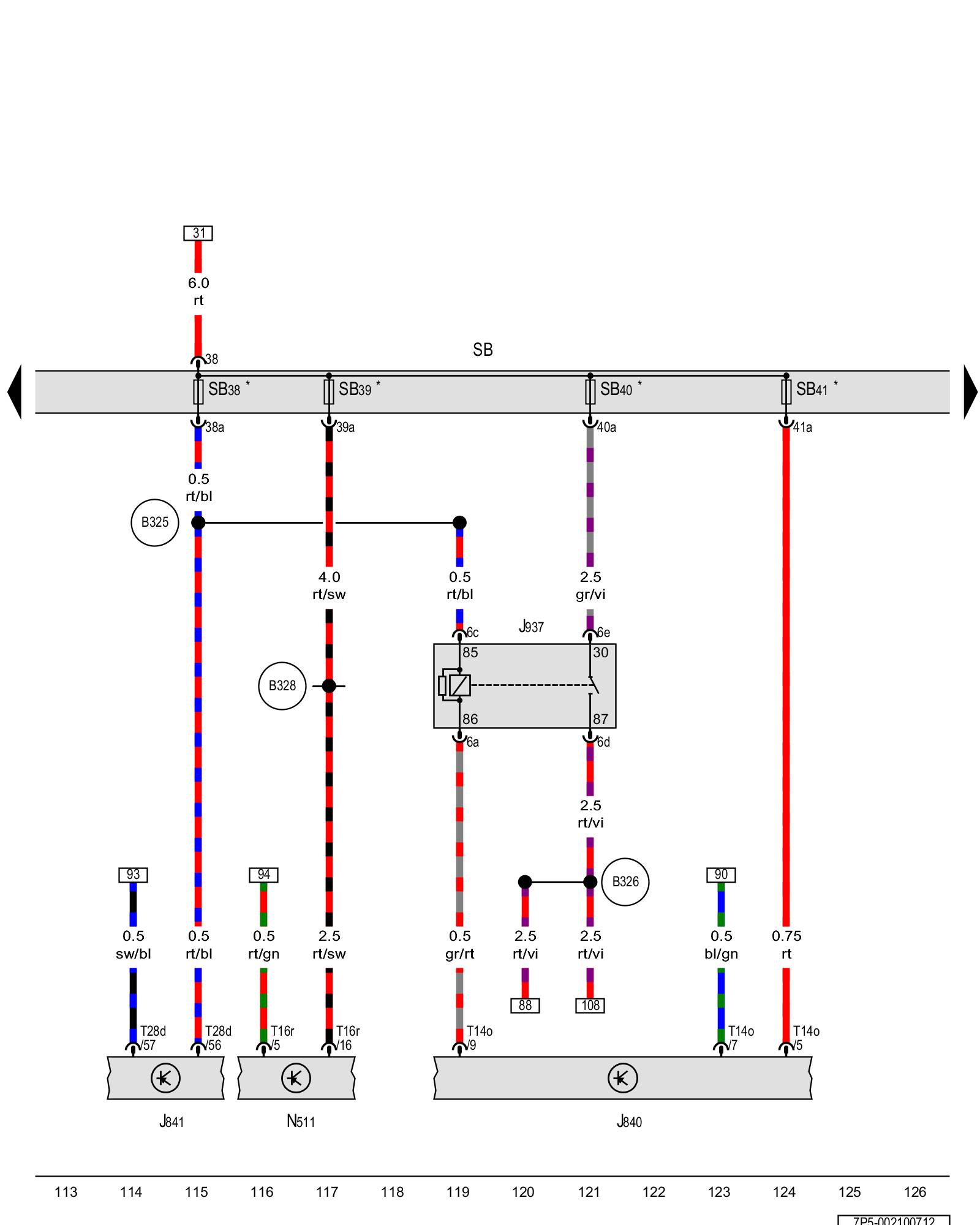

Diagram 2/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fan activation relay, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J840 - Battery regulation control module Overview of Control Modules in Luggage Compartment Hybrid Components Overview Battery Regulation Control Module -J840-

J841 - Electrical drive control module Hybrid Components Overview Electric Drive Power and Control Electronics -JX1- / -J841- / -A19- / -A37-

J937 - Fan activation relay

N511 - Decoupler pressure actuator Hybrid Components Overview Decoupler Pressure Actuator -N511-

SB - Fuse panel B Overview of fuse holder

SB38 - Fuse 38 (on fuse panel B)

SB39 - Fuse 39 (on fuse panel B)

SB40 - Fuse 40 (on fuse panel B)

SB41 - Fuse 41 (on fuse panel B)

T14o - 14-pin connector Overview: Coupling Stations Inside The Luggage Comp.

T16r - 16-pin connector

T28d - 28-pin connector

(B325) - Positive connection 11 (30a) (in main wiring harness)

(B326) - Positive connection 12 (30a) (in main wiring harness)

(B328) - Positive connection 14 (30a) (in main wiring harness)

* - only for vehicles with hybrid drive
