Acceleration Sensor: Service and Repair

Front Body Acceleration Sensor

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1410)

Component Location

The left/right front body acceleration sensors (G341/G342) are installed on the upper wheel housing.

Removing

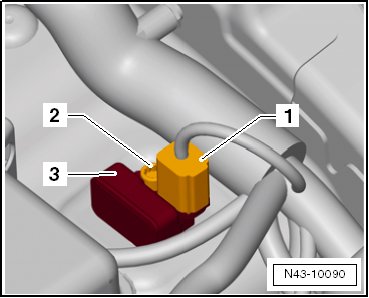

- Release and remove the connector - 1 -.






- Unscrew bolt - 2 - and remove the front body acceleration sensors - 3 -.

Installing

Install in reverse order of removal.

Tightening Specifications
