Driver Side Rear Side Airbag Crash Sensor G256

Driver Side Rear Side Airbag Crash Sensor G256

• The driver side rear side airbag crash sensor (G256) is installed on the driver side in front of the rear wheel housing.

Removing

The general safety precautions for working on airbag, belt tensioner and battery cut-out units (pyrotechnic components) must be observed.

- Disconnect the vehicle battery.

- Remove the bench seats. Refer to => [ Bench Seats ] Bench Seats.

- Remove the rear seats. Refer to => [ Rear Seats ] Rear Seats.

- Remove the belt anchor of the outer rear seat. Refer to => [ Outer Rear Seat Belt Anchors ] Outer Rear Seat Belt Anchors.

- Remove the C-pillar trim. Refer to => [ C-Pillar Trim ] C-Pillar Trim.

- Remove and install the wheel housing trim. Refer to => [ Wheel Housing Trim ] Wheel Housing Trim.

- Remove the sill panel strip. Refer to => [ Sill Panel Trims ] Sill Panel Trims.

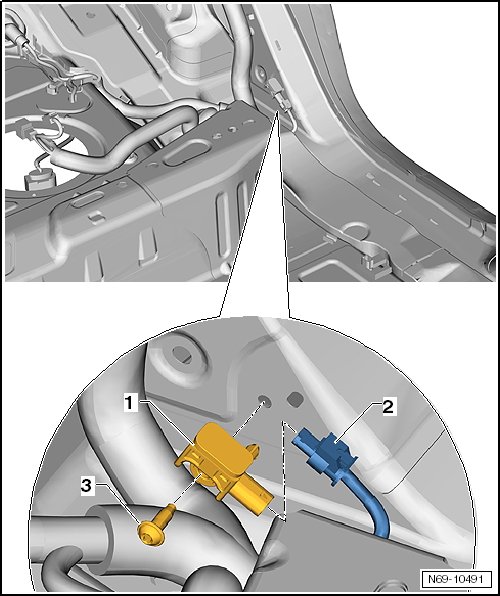

- Unlock the connector lock and disconnect the connector - 2 - from the crash sensor - 1 -.

- Remove the bolt - 3 - (9 Nm).






Installation

- To install, perform the steps used for removal in reverse order.

- Switch the ignition on.

Make sure that no persons are in the vehicle.

- Connect the vehicle battery.
