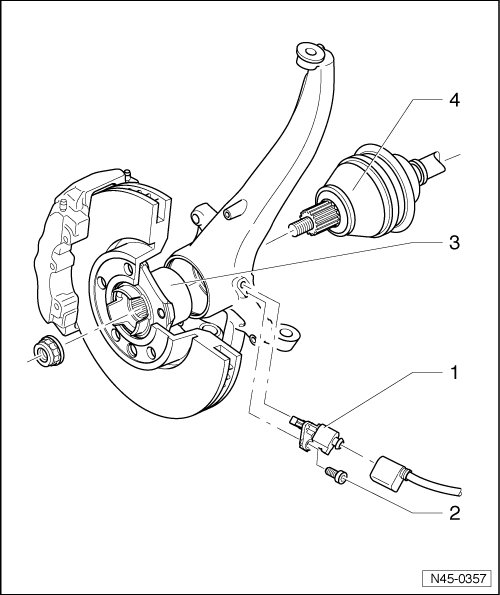

Front Wheel Speed Sensor Overview

Front Wheel Speed Sensor Overview






1 ABS Speed Sensor

• Before inserting sensor, clean inner surface of bore hole and coat with Polycarbamide grease (G 052 142 A2).

• Removing and installing, refer to => [ Front Wheel Speed Sensor ] Front Wheel Speed Sensor.

2 Bolt

• 8 Nm

3 Wheel Hub with Wheel Bearing

• The ABS sensor ring is installed in the wheel bearing.

4 Drive Axle
