Home >> Volkswagen >> 2011 >> Touareg (7P5) V6-3.0L DSL Turbo (CATA) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Control Module >> Locations >> Left HID headlamp control module -J343-

Left HID headlamp control module -J343-







Control modules in engine compartment

Left HID headlamp control module -J343-

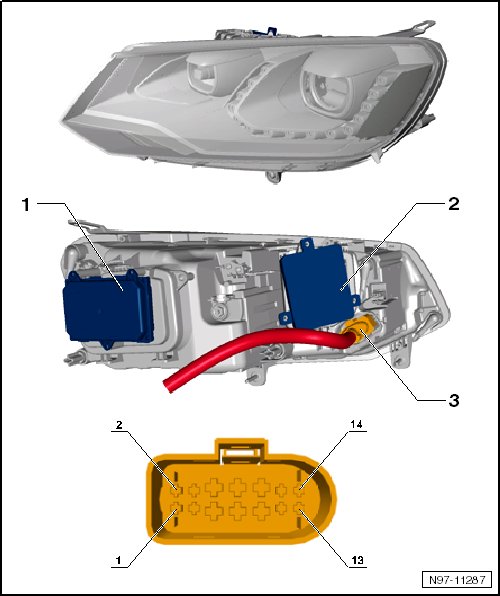

Component Location







1 - Left headlamp power output stage -J667-

2 - Left HID headlamp control module -J343-

3 - 14-pin connector -T14d-
