Instrument Panel Control Module: Locations







Control modules in interior

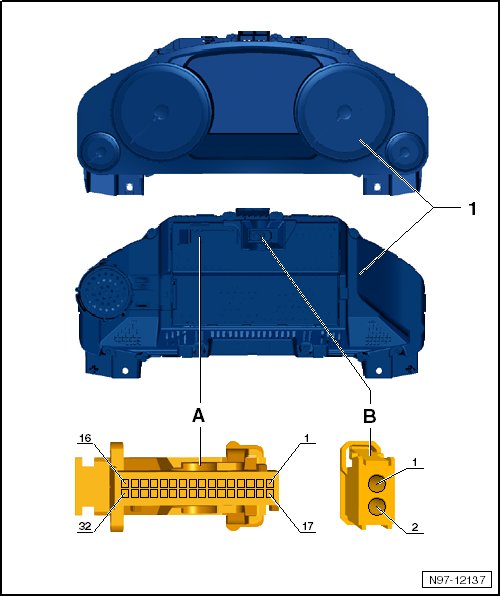

Instrument cluster control module -J285-







1 - Instrument cluster control module -J285-

A - 32-pin connector -T32-

B - 2-pin connector -T2fn-

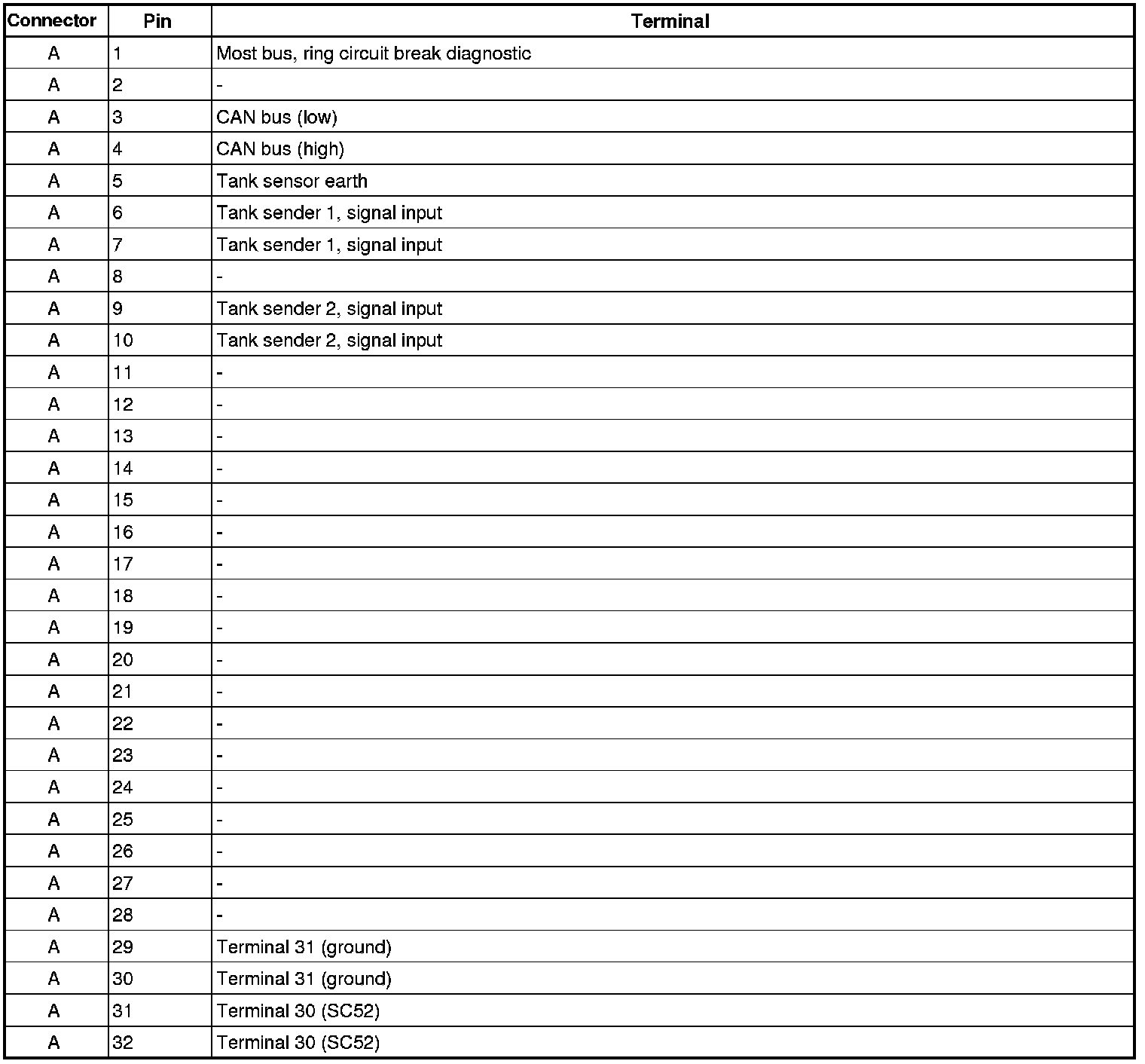

Description of Signal Control Unit with Display in Dash Panel Insert -J285-
