Parking Assist Control Module: Diagrams






Parking Systems - Connector Views

Parking aid control module -J446-

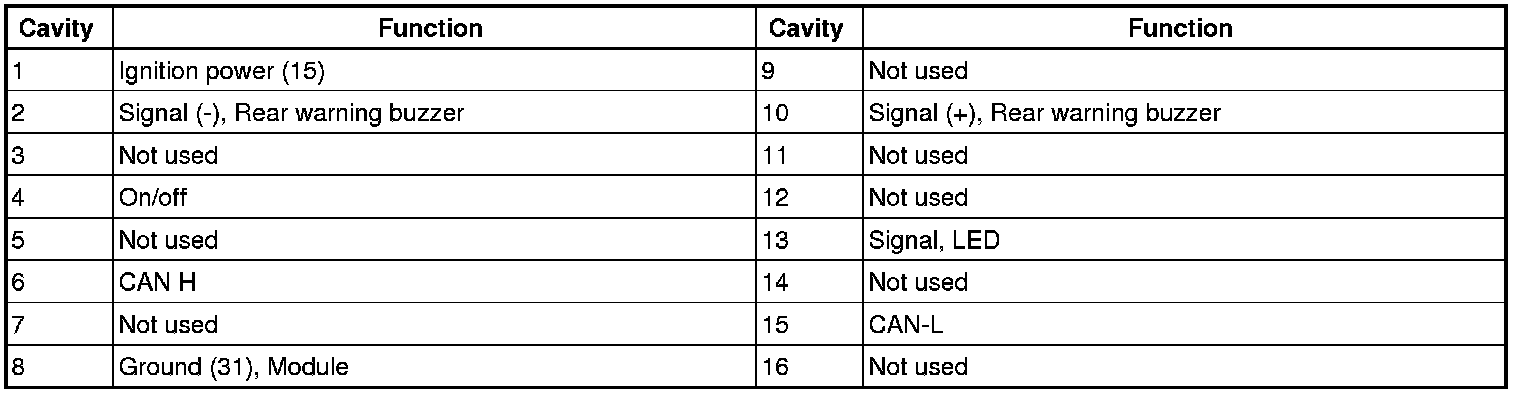

16 pin connector

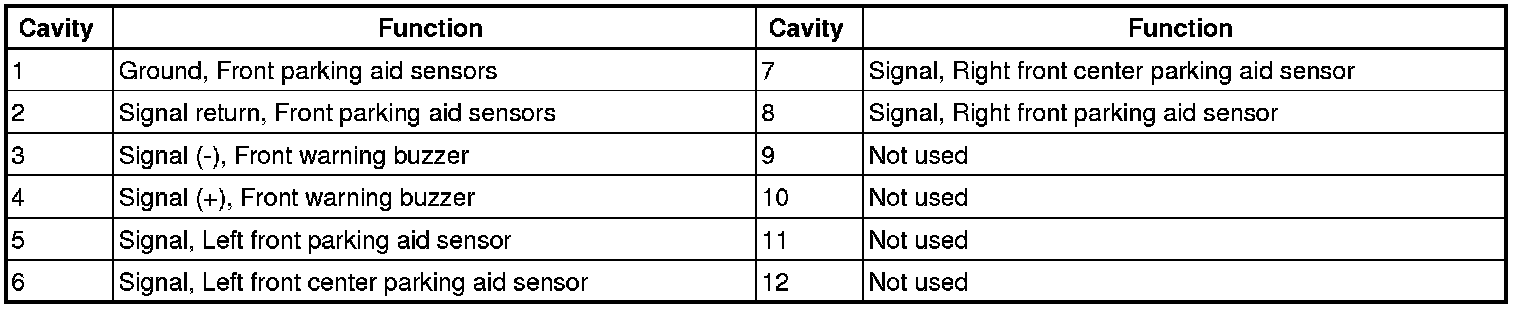

12c connector

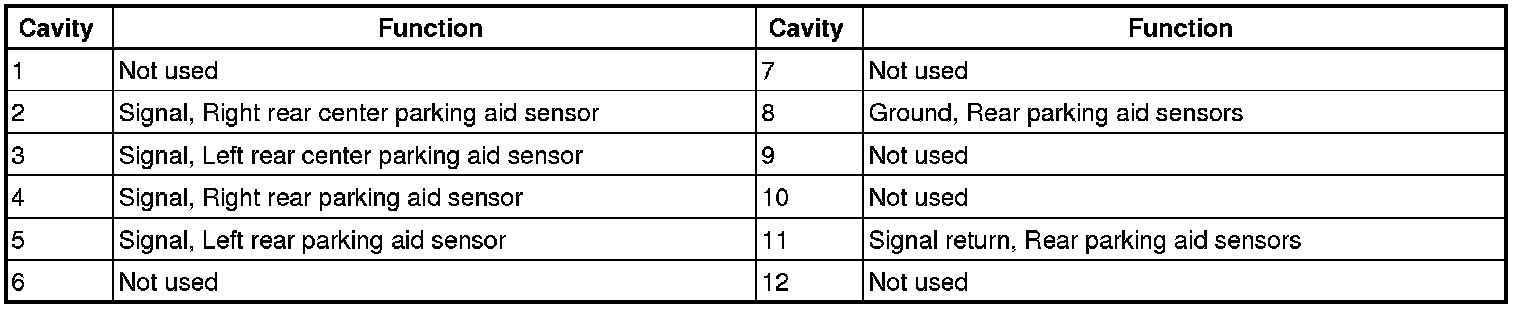

12d connector
