Fuel Pump Control Unit: Locations

Control modules in luggage compartment

Fuel pump control module -J538-









Component Location

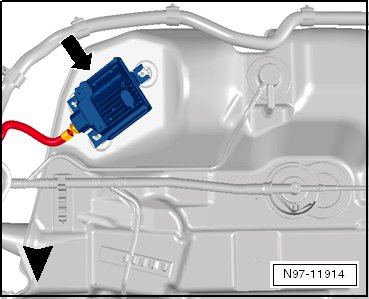

Fuel pump control unit -J538- -arrow-


Pin Arrangements

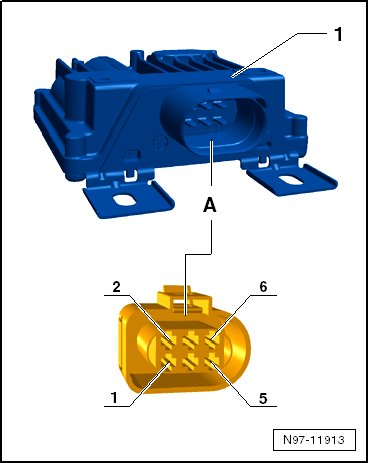

1 - Fuel pump control module -J538-
A - 6-pin connector -T6c-
