Reducing Agent Reservoir Sensor







Reducing Agent Reservoir Sensor

Observe all safety precautions: => [ Safety Precautions ] Safety Precautions

View clean working conditions: => [ Clean Working Conditions ] Clean Working Conditions

Prior to repair work, perform a preliminary check to verify the condition. Refer to => [ Preliminary Check ] Preliminary Check.

The AdBlue(R) (reducing agent) may irritate skin or eyes. If the fluid comes into contact with skin, rinse/flush the affected area immediately with plenty of water.

Special tools, testers and auxiliary items required

Multimeter.

Wiring Diagram.

Test requirements

The Reducing Agent Reservoir Processing Unit (G698) and the Reducing Agent Reservoir Sensor (G697) , are a combined unit and are serviced as an assembly.

The ignition switched Off.

Start diagnosis

- Remove the Reducing Agent Tank Assembly. The assembly is located above the rear muffler, mounted under the spare tire well, protected by a metal shield. Refer to the Repair Information for location and removal instructions.

- Disconnect the T3 electrical harness connector at the Reducing Agent Reservoir Processing Unit (G698).

- Switch the ignition On.

- Using a multimeter, measure the voltage between terminal 2 and 3 of the Reducing Agent Reservoir Processing Unit (G698) electrical harness connector. Refer to Wiring Diagrams for circuit details.

Specified value: Battery voltage

- Switch the ignition Off.

If the specified value was Not obtained:

- Check the wires for high resistance, short circuit or open.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- Repair as necessary.

If the specified value was obtained:

Checking wiring

- Remove the Engine Control Module (ECM) (J623). Refer to the Repair Information.

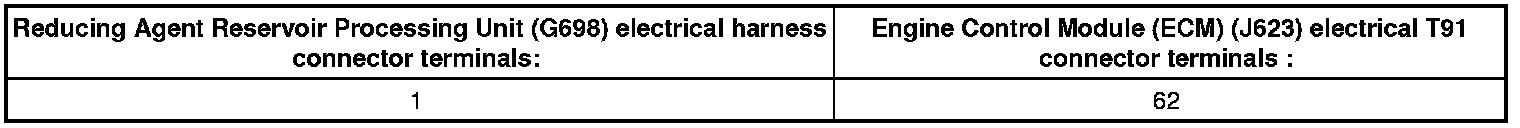

- Using a multimeter, measure the resistance of the circuits between the Reducing Agent Reservoir Processing Unit (G698) and the Engine Control Module (ECM) (J623). Refer to the applicable wiring diagram.






Specified value: 1.5 ohms Max.

If the specification was Not obtained:

- Check the wires for high resistance, short circuit or open.

- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

- Repair as necessary.

If no malfunction is detected in the wiring and the terminal 2 to 3 voltage reading was OK:

- Replace the Reducing Agent Reservoir Processing Unit/Reducing Agent Reservoir Sensor (G698/G697). Refer to the Repair Information.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Monitors, Trips, Drive Cycles and Readiness Codes.
