Level Control System Control Head (E281) and Suspension Adjustment Switch

Level Control System Control Head (E281) and Suspension Adjustment Switch

The level control system control head (left) and the suspension adjustment switch (right) are located in the center console behind the shift cover.

• Removing and installing the level control system control head and the suspension adjustment switch are identical.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove selector lever trim.

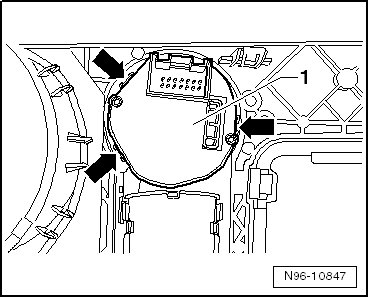

- Squeeze the 3 retainers - arrows - and push the switch - 1 - out of the trim.






Installation

Install in reverse order of removal.
