Timing Chain Covers Overview

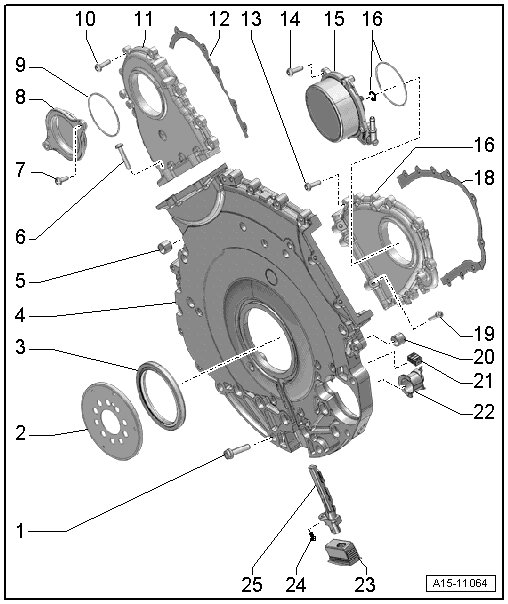

Timing Chain Covers Overview






1 Bolt

• 9 Nm

• Note the tightening sequence, refer to => [ Timing Chain Covers ] Timing Chain Covers.

2 Sensor Wheel

• For the engine speed sensor.

3 Crankshaft Seal, Timing Chain Side

• Removing and installing, refer to => [ Crankshaft Seal, Timing Chain Side ] Crankshaft Seal, Timing Chain Side.

4 Lower Timing Chain Cover

• Removing and installing, refer to => [ Timing Chain Covers ] Timing Chain Covers.

5 Alignment Sleeve

• Quantity: 2

6 Bolt

• Note the tightening sequence, refer to => [ Left Timing Chain Cover Bolt Tightening Sequence and Specification ] Timing Chain Covers.

7 Bolt

• 9 Nm

8 Cap

9 O-ring

• Always replace.

10 Bolt

• Always replace.

• Tightening specification and sequence, refer to => [ Left Timing Chain Cover Bolt Tightening Sequence and Specification ] Timing Chain Covers.

11 Left Timing Chain Cover

• Removing and installing, refer to => [ Timing Chain Covers ] Timing Chain Covers.

12 Gasket

• Always replace.

13 Bolt

• 9 Nm

• Note the tightening sequence, refer to => [ Lower Timing Chain Cover Bolt, Tightening Sequence and Specification ] Timing Chain Covers.

14 Bolt

• 9 Nm

15 Vacuum Pump

16 O-ring

• always replace.

17 Right Timing Chain Cover

• Removing and installing, refer to => [ Timing Chain Covers ] Timing Chain Covers.

18 Gasket

• Always replace.

19 Bolt

• Note the tightening sequence, refer to => [ Lower Timing Chain Cover Bolt, Tightening Sequence and Specification ] Timing Chain Covers.

20 Alignment Sleeve

• Quantity: 2

21 Seal

• Quantity: 2

22 Sealing Cap

• For the starter.

23 Cover

• For the engine speed sensor.

24 Bolt

• 9 Nm

25 Engine Speed Sensor (G28)

• Removing and installing, refer to => [ Engine Speed Sensor G28 ] Service and Repair.
