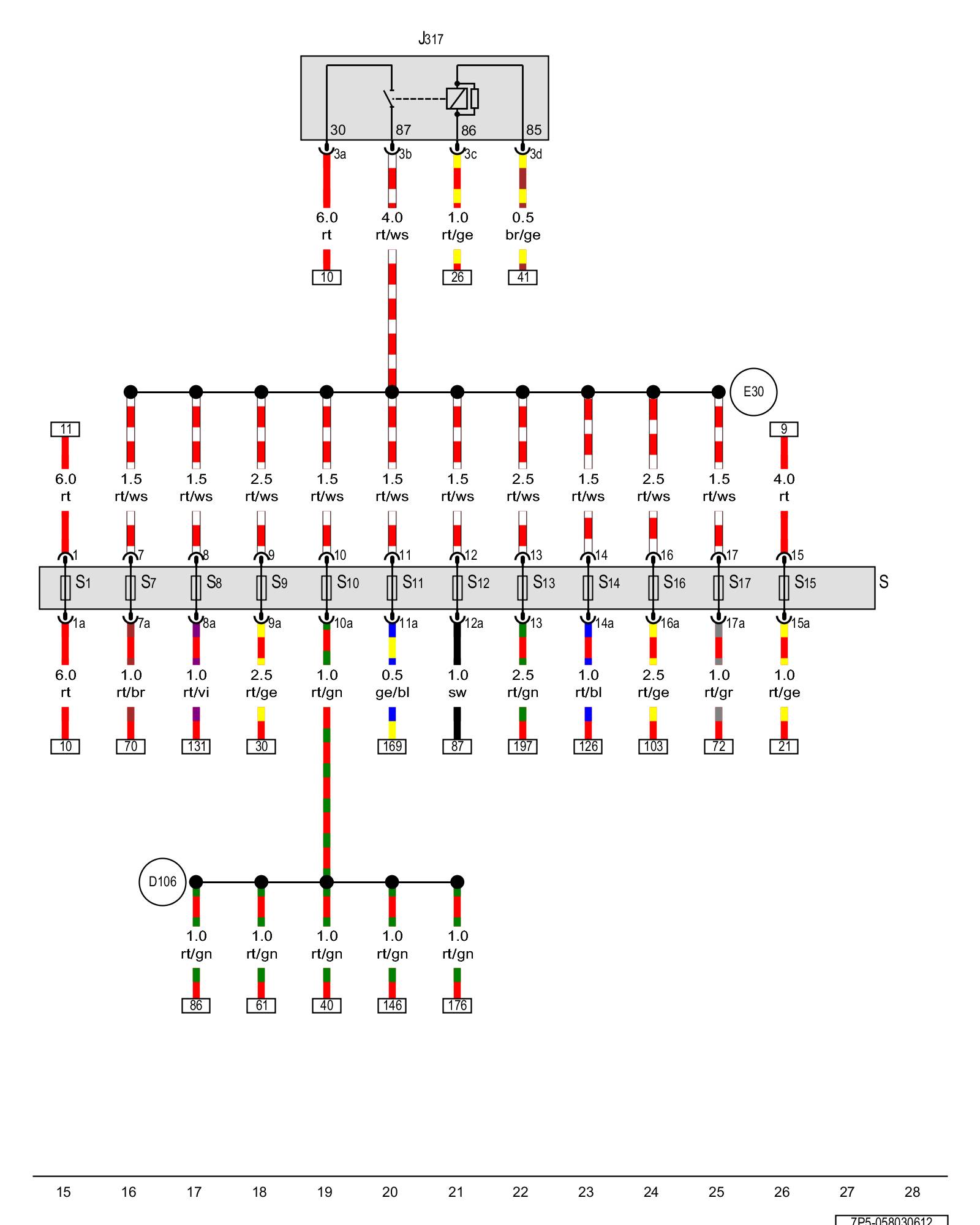

Diagram 58/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 30 power supply relay, Fuses (on fuse panel)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J317 - Terminal 30 power supply relay Relay Carrier On Electronics Box (in Plenum Chamber, Left)

S - Fuses (on fuse panel) Locations

S1 - Fuse 1 (on fuse panel) Locations

S7 - Fuse 7 (on fuse panel) Locations

S8 - Fuse 8 (on fuse panel) Locations

S9 - Fuse 9 (on fuse panel) Locations

S10 - Fuse 10 (on fuse panel) Locations

S11 - Fuse 11 (on fuse panel) Locations

S12 - Fuse 12 (on fuse panel) Locations

S13 - Fuse 13 (on fuse panel) Locations

S14 - Fuse 14 (on fuse panel) Locations

S15 - Fuse 15 (on fuse panel) Locations

S16 - Fuse 16 (on fuse panel) Locations

S17 - Fuse 17 (on fuse panel) Locations

(D106) - Connection 4 (in engine compartment wiring harness)

(E30) - Connection 87a (in engine wiring harness)
