Diagram 31/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

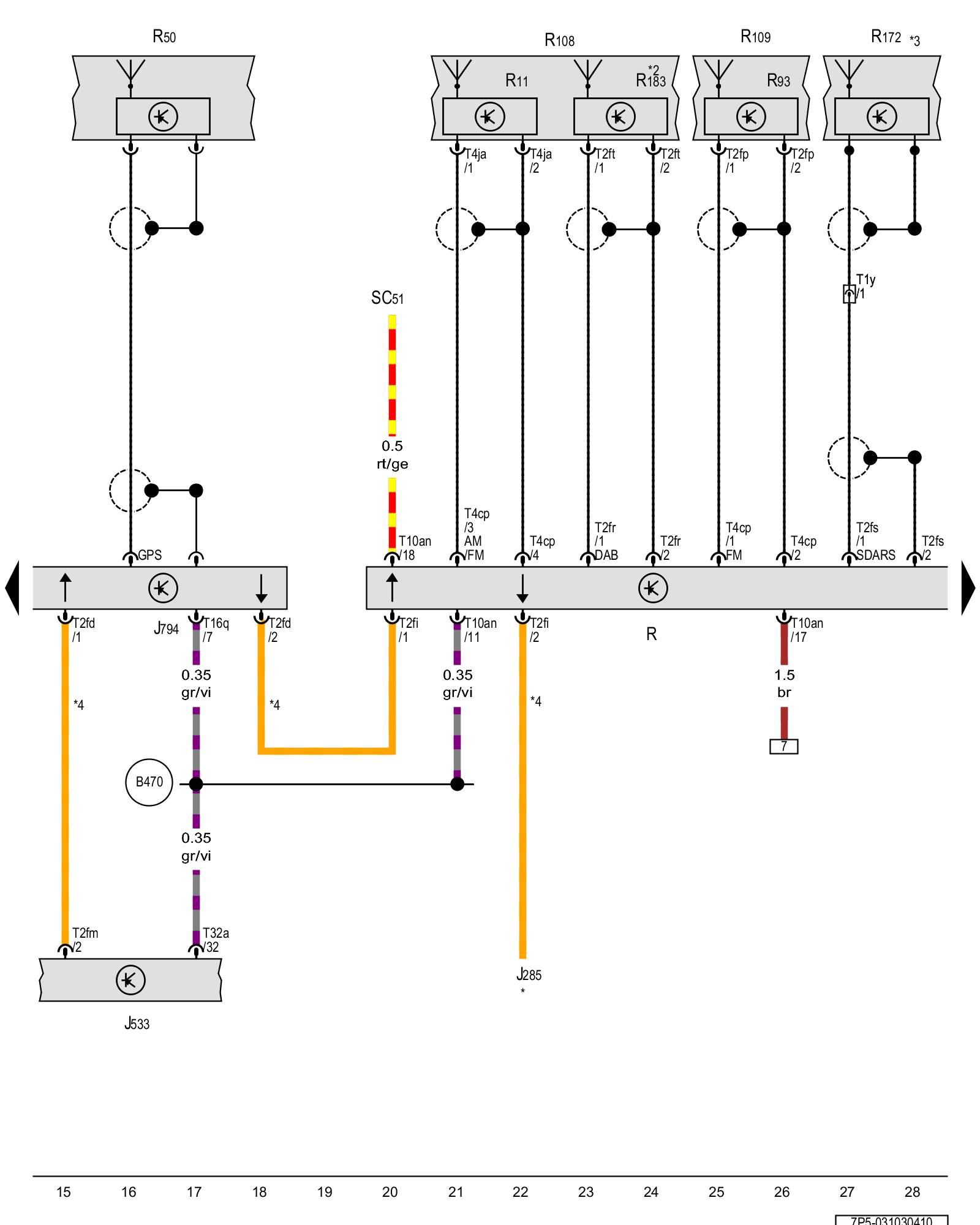

Information electronics control module 1, Radio, GPS antenna, Left antenna module, Right antenna module, Satellite tuner antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Control Modules in Interior

J533 - Data bus on board diagnostic interface Control Modules in Interior

J794 - Information electronics control module 1 Control Modules in Interior RNS 850 Radio Navigation System Overview

R - Radio Overview of Control Modules in Luggage Compartment RNS 850 Radio Navigation System Overview

R11 - Antenna, in the left side window

R50 - GPS antenna

R93 - Radio antenna 2, in the right side window

R108 - Left antenna module RNS 850 Radio Navigation System Overview

R109 - Right antenna module RNS 850 Radio Navigation System Overview

R172 - Satellite tuner antenna

R183 - Digital radio antenna, in the left side window

SC51 - Fuse 51 (on fuse panel C) Locations

T1y - Single connector

T2fd - Double connector

T2fi - Double connector

T2fm - Double connector

T2fp - Double connector

T2fr - Double connector

T2fs - Double connector

T2ft - Double connector

T4cp - 4-pin connector

T4ja - 4-pin connector

T10an - 10-pin connector

T16q - 16-pin connector

T32a - 32-pin connector

(B470) - Connection 6 (in main wiring harness)

* - Refer to applicable wiring diagram for Infotainment MOST bus

*2 - Depending on equipment

*3 - USA only

*4 - Fiber optic cable
