Left / RR Door Control Module -J388- / -J389-






Door Control Units - Connector Views

Left/Right rear door control module -J388- / -J389-

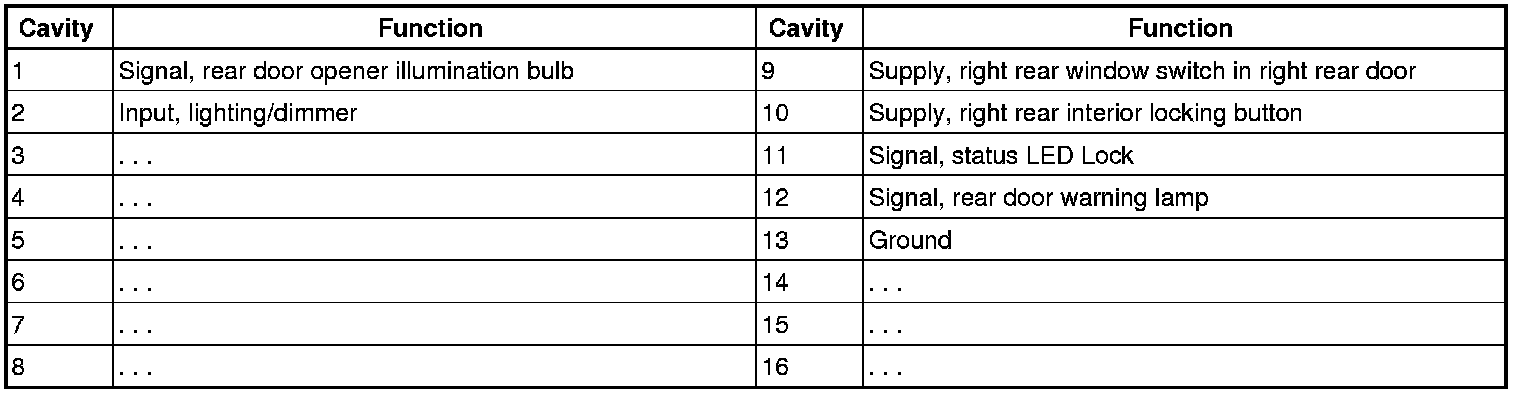

Connector, 16 Pin












Connector, 6 Pin

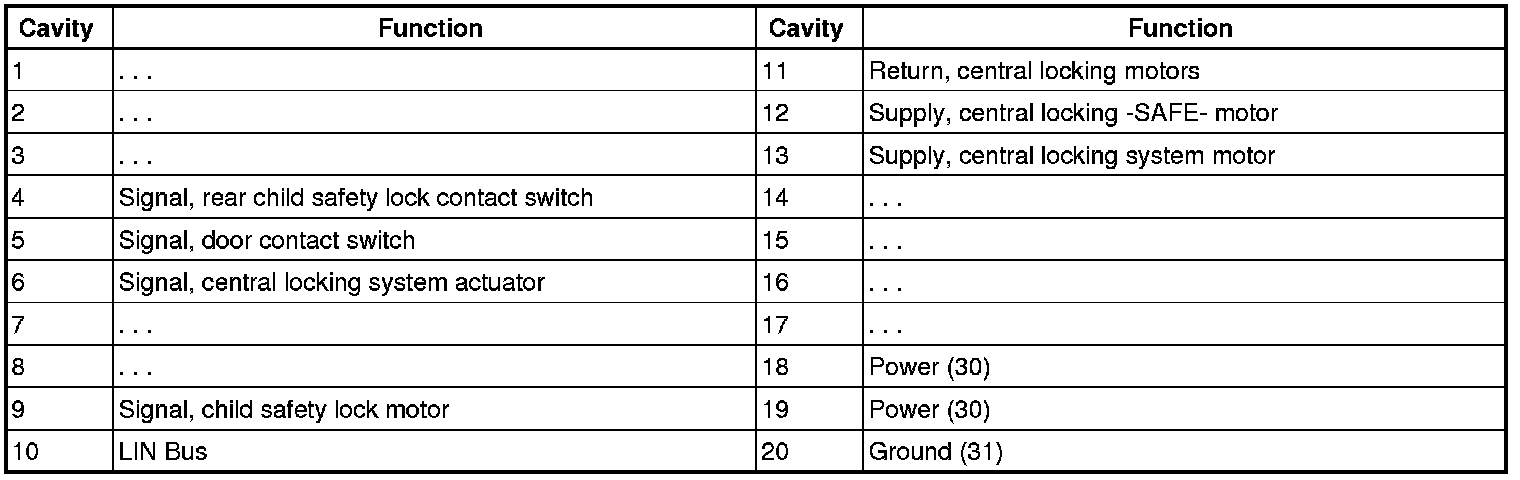

Connector, 20 Pin
