Deformation Element Assembly Overview

Deformation Element Assembly Overview

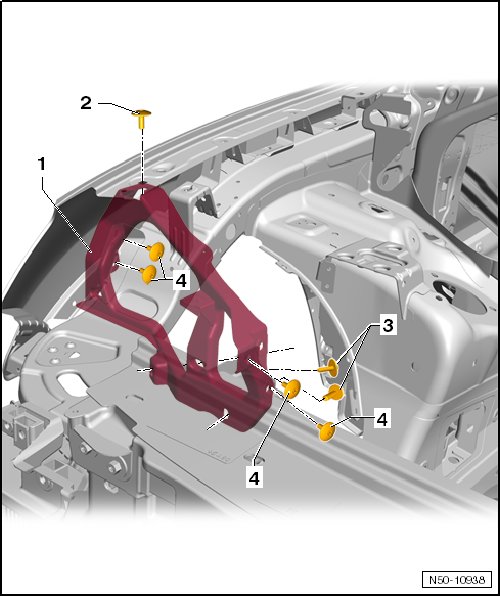

• The bolt numbering indicates the bolt sequence.






1 Deformation element

2 Bolt

• Quantity: 1 at fender

• Tightening specification: 6 Nm

3 Bolt

• Quantity: 2

• Tightening specification: 8 Nm

4 Bolt

• Quantity: 2 at upper longitudinal member

• Quantity: 2 on support

• Tightening specification: 8 Nm
