Adjusting Unit with Motor

Adjusting Unit with Motor

• Removing and installing is described only for the left adjusting unit with motor. Removing and installing right adjusting unit with motor is derived accordingly from this.






Perform the following:

Removing

- Remove the mirror glass. Refer to => [ Mirror Glass ] Mirror Glass.

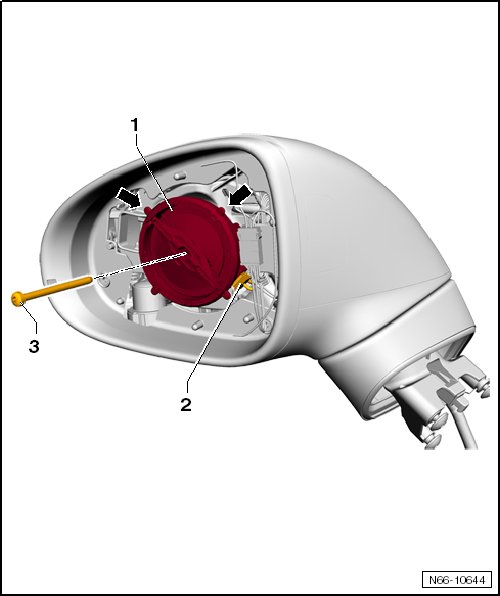

- Remove the bolt - 3 -.

- Remove the adjusting unit with the motor - 1 - and disconnect the harness connector - 2 -.

Installation

Install in reverse order of removal.

- Tighten the screws - 3 - to 2 Nm.

• Perform a function test before installing the mirror glass.
