Storage Compartment/Ashtray Unit

Storage Compartment/Ashtray Unit

Removing

- Turn off the ignition.

- Remove the gearshift mechanism trim. Refer to => [ Gearshift Mechanism Trim ] Gearshift Mechanism Trim.

• The storage compartment/ashtray unit is engaged on both sides and centrally in the center console.

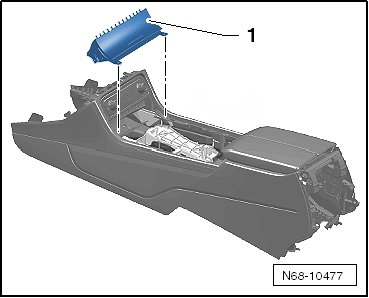

- Unclip the storage compartment/ashtray unit - 1 - on the right side in an upward direction and hold under tension to prevent it from reengaging.

- Unclip the storage compartment/ashtray unit on the left side in an upward direction and hold under tension to prevent it from reengaging.

- Unclip the storage compartment/ashtray unit upward from the central mount and disconnect the harness connector.






Installation

- To install, perform the steps used for removal in reverse order.
