Window Frame Trim

Window Frame Trim

Removing

• Emergency triangle removed.

- Switch off the ignition.

- Remove the rear lid trim. Refer to => [ Rear Lid Trim ] Rear Lid Trim.

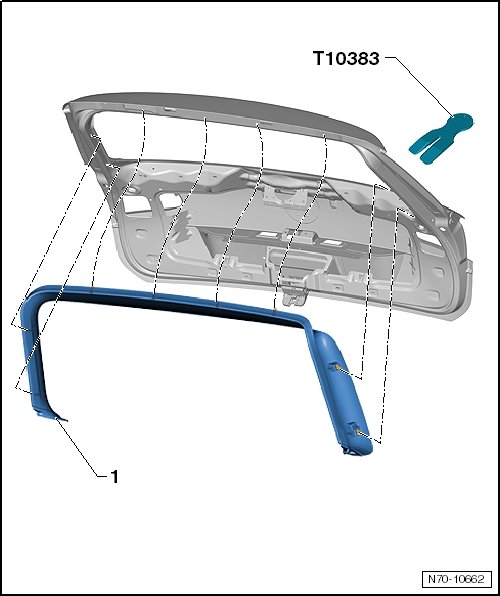

- Use the wedge (T10383) to pry the trim - 1 - on the side in the area of the retaining clips out of the mounts in the rear lid.

- Pry the trim at the upper edge in the area of the retaining clips out of the mounts.






Installation

- Installation is performed in the reverse order of removal.

• Before installation, inspect the retaining clips for damage and replace if necessary.
