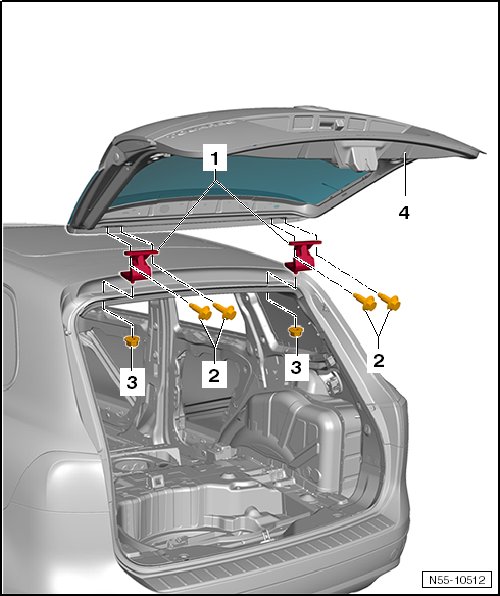

Rear Lid Hinge Assembly Overview

Rear Lid Hinge Assembly Overview






1 Hinge

2 Bolt

• 2 for each hinge

• Tightening specification: 10 Nm

3 Hex nut

• Quantity: 2

• Tightening specification: 20 Nm + 90°

4 Rear lid
