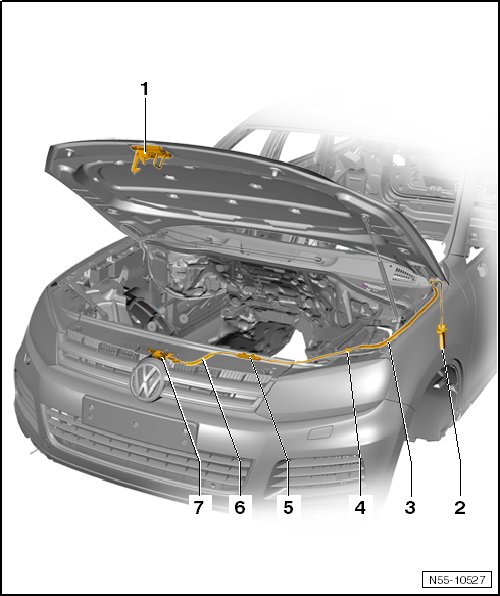

Hood Locking and Unlocking Components Assembly Overview

Hood Locking and Unlocking Components Assembly Overview






1 Hood catch

• Removing, refer to :=> [ Striker Pin ] Striker Pin

• Adjusting, refer to => [ Hood Latch, Adjusting ] Hood Latch, Adjusting

2 Actuating lever

3 Release cable

• From the cable coupling to the actuator lever

4 Retaining clip

5 Release Coupling

• The cable coupling is located above the driver side headlamp.

• Disconnecting, refer to => [ Release, Disconnecting ] Release, Disconnecting

6 Release cable

• From the hood lock to the cable coupling

• Clipped into the cable coupling

7 Hood lock
