Front Door Limiter: Service and Repair

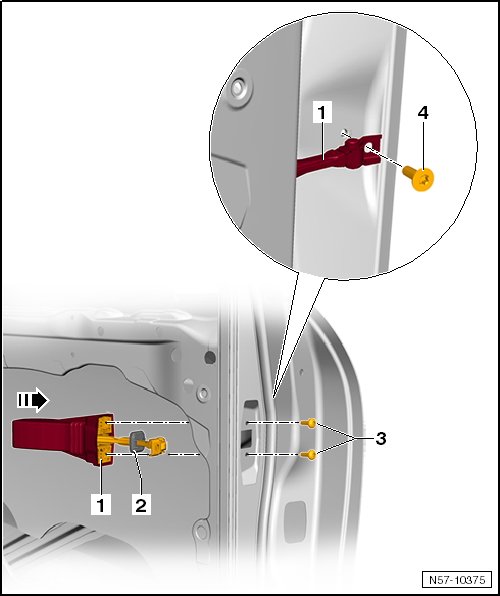

Door Strap






Perform the following:

Removing

- Remove subframe. Refer to => [ Subframe ] Subframe.

- Remove the bolt - 4 - from the A-pillar.

- Remove the bolts - 3 - and door strap - 1 -.

Installation

- Install the door strap - 1 -. The seal - 2 - must be properly installed.

- Tighten the bolts - 3 -, tightening specification: 9 Nm

- Tighten the bolt - 4 -, tightening specification: 30 Nm.
