Diagram 4/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

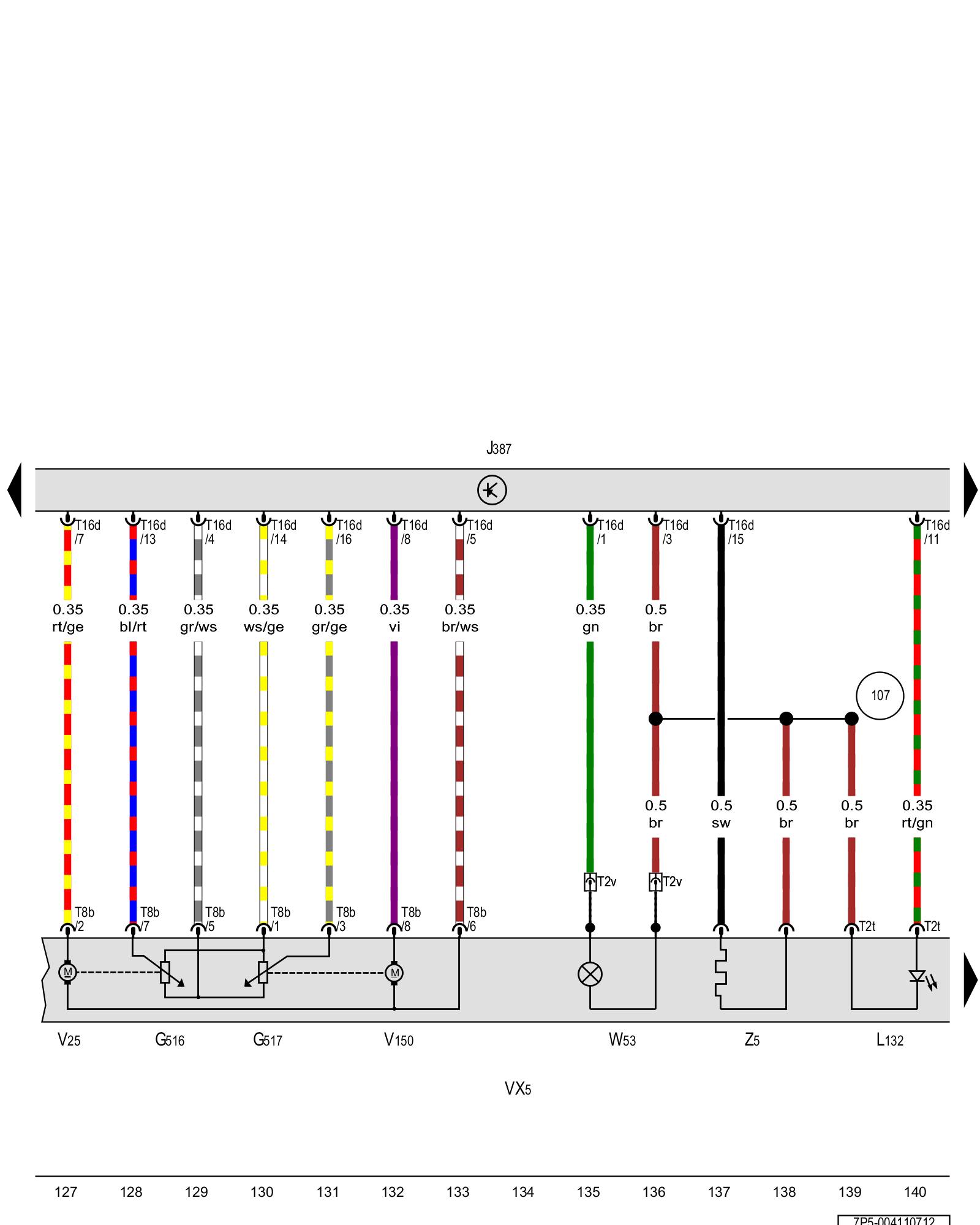

Front passenger door control module, Front passenger exterior rearview mirror, Front passenger mirror adjustment motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G516 - Front passenger exterior rearview mirror horizontal position sensor

G517 - Front passenger exterior rearview mirror vertical position sensor

J387 - Front passenger door control module Control Modules in Interior

L132 - Front passenger exterior rearview mirror turn signal bulb

T2t - Double connector

T2v - Double connector

T8b - 8-pin connector

T16d - 16-pin connector

VX5 - Front passenger exterior rearview mirror

V25 - Front passenger mirror adjustment motor

V150 - Front passenger mirror adjustment motor

W53 - Front passenger entry lamp in exterior rearview mirror

Z5 - Heated front passenger exterior rearview mirror

(107) - Ground connection (in exterior mirror wiring harness)

Previous Diagram 4/10 (Tracks 113-126)

Next Diagram 4/12 (Tracks 141-154)
