Rear Final Drive Bonded Rubber Bushings

Rear Final Drive Bonded Rubber Bushings

• The ID - arrow - on the bottom side of the final drive identifies which final drive is installed.

Example of the ID on a final drive "02D"






Removing

Special tools, testers and auxiliary items required

• Thrust Piece (3291/1) from Assembly Device (3291)

• Spindle from Assembly Device (3292)

• Thrust Pieces (3348 and 3348/1) from Front and Rear Bearing Tool (3348)

• Kukko Extractor 46-58 mm (21/7)

• Kukko Support (22/2)

Upper Bushing:


Wear safety gloves.

To position the Kukko support (22/2) :

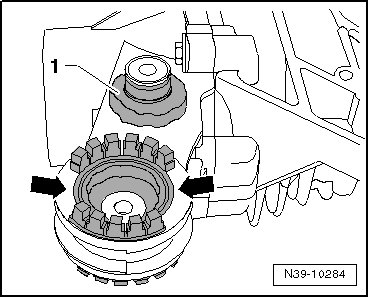

- Break two pieces - arrows - out of the bearing collar.






- Remove the metal core - 1 -.

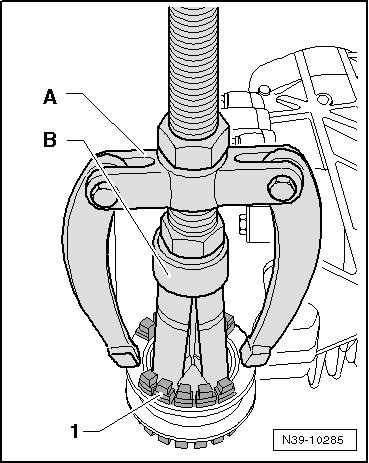

- Remove the bonded rubber bushing - 1 -.






A - Kukko support (22/2)

B - Kukko extractor 46-58 mm (21/7)

Lower Bushing:

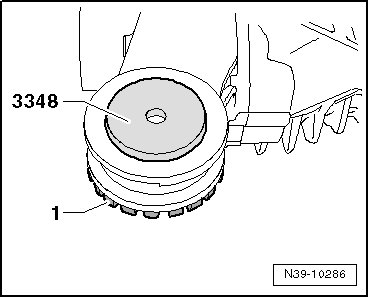

- Drive out the bonded rubber bushing - 1 - using thrust piece (3348) from front and rear bearing tool (3348) and a plastic mallet.






Installing

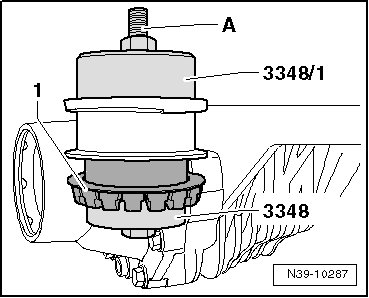

Lower Bushing:

- Pull the bushing far enough in until the collar contacts the entire circumference on the final drive.

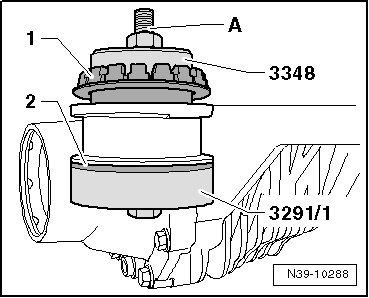

Upper Bushing:

- Pull the bushing in far enough until the collar contacts the entire circumference on the final drive.






- Buffer, installing, installed position. Refer to => [ Bonded Rubber Bushing Overview ] Bonded Rubber Bushing Overview.
