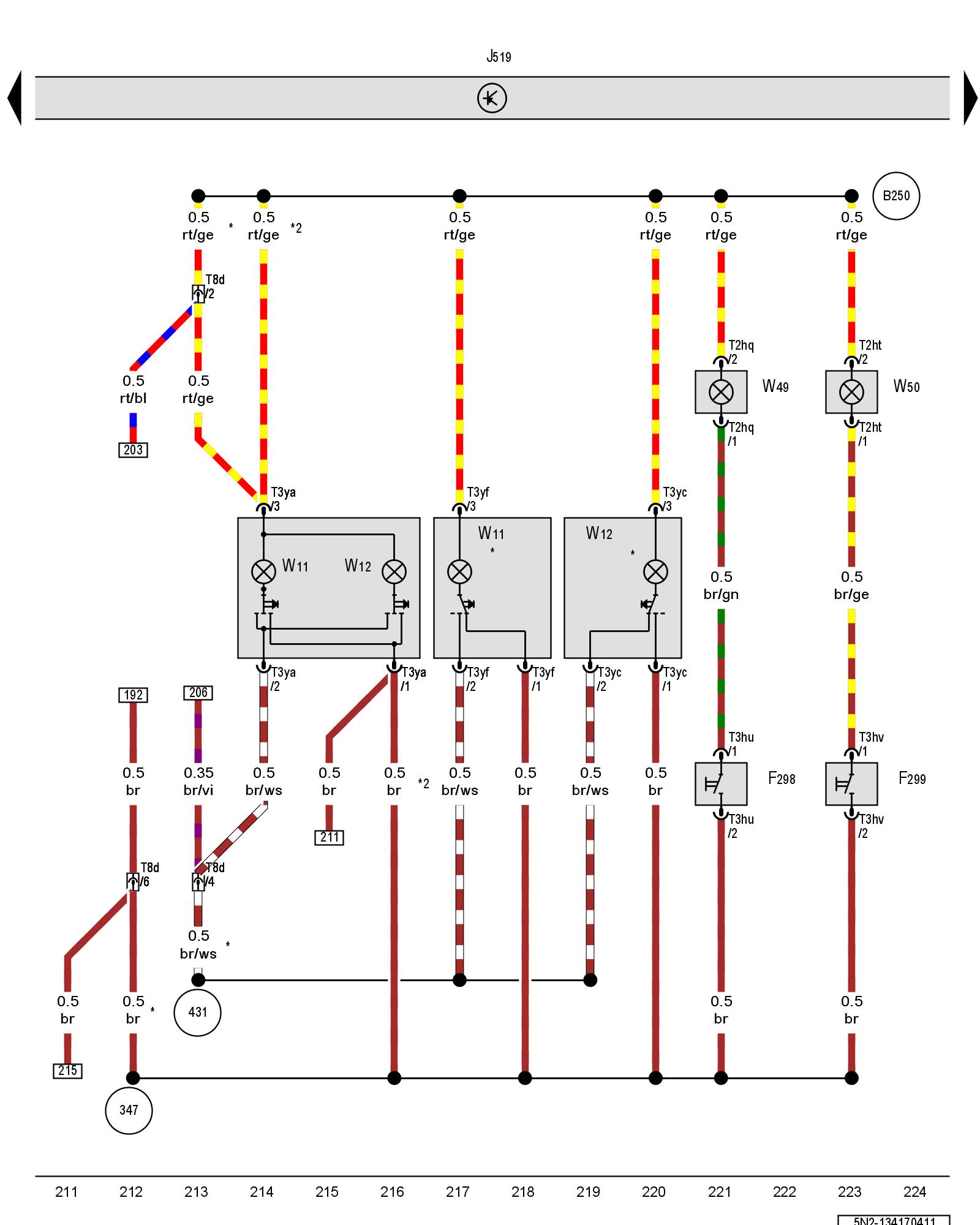

Diagram 134/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Left rear reading lamp, Left illuminated vanity mirror, Right illuminated vanity mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F298 - Left vanity mirror contact switch

F299 - Right vanity mirror contact switch

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

T2hq - Double connector

T2ht - Double connector

T3hu - 3-pin connector

T3hv - 3-pin connector

T3ya - 3-pin connector

T3yc - 3-pin connector

T3yf - 3-pin connector

T8d - 8-pin connector Component Locations

W11 - Left rear reading lamp

W12 - Right rear reading lamp

W49 - Left illuminated vanity mirror

W50 - Right illuminated vanity mirror

(347) - Ground connection (in roof wiring harness)

(431) - Ground connection 2 (in roof wiring harness)

(B250) - Positive connection (in roof wiring harness)

* - Only for vehicles with panorama sunroof

*2 - Only for vehicles with illuminated vanity mirror

Previous Diagram 134/16 (Tracks 197-210)

Next Diagram 134/18 (Tracks 225-238)
