Diagram 147/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

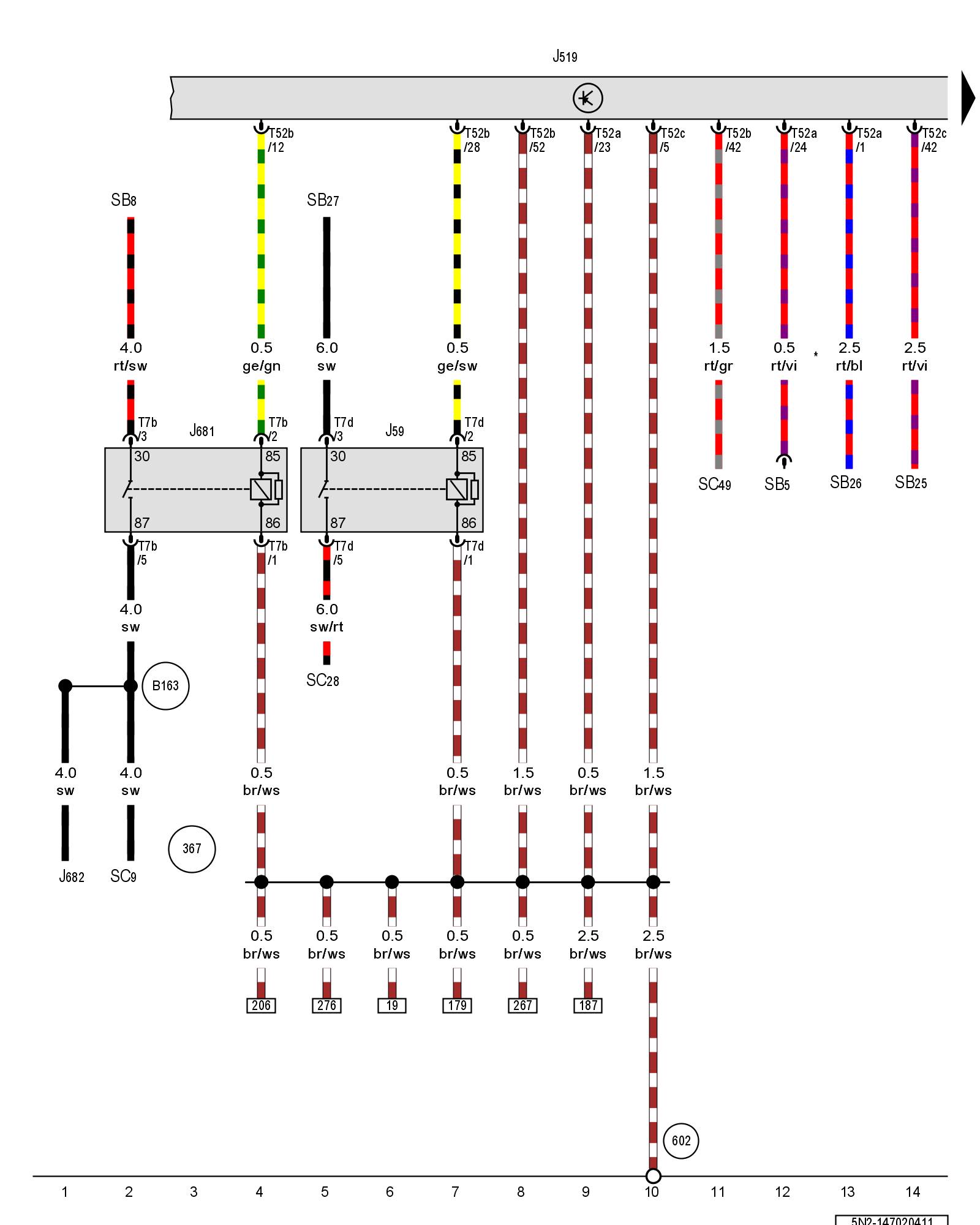

Load reduction relay, Vehicle electrical system control module, Terminal 15 power supply relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J59 - Load reduction relay Relay Carrier Overview

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

J681 - Terminal 15 power supply relay 2 Relay Carrier Overview

J682 - Terminal 50 power supply relay Relay Carrier Overview

SB5 - Fuse 5 (on fuse panel B) Overview Of Fuses

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses

SC9 - Fuse 9 (on fuse panel C) Overview Of Fuses

SB25 - Fuse 25 (on fuse panel B) Overview Of Fuses

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

SB27 - Fuse 27 (on fuse panel B) Overview Of Fuses

SC28 - Fuse 28 (on fuse panel C) Overview Of Fuses

SC49 - Fuse 49 (on fuse panel C) Overview Of Fuses

T7b - 7-pin connector

T7d - 7-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(367) - Ground connection 2 (in main wiring harness)

(602) - Ground connection in left front footwell Overview Of Ground Connections in Rear Seats

(B163) - Positive connection 1 (15) (in interior wiring harness)

* - Only for vehicles without Start/Stop system

Next Diagram 147/3 (Tracks 15-28)
