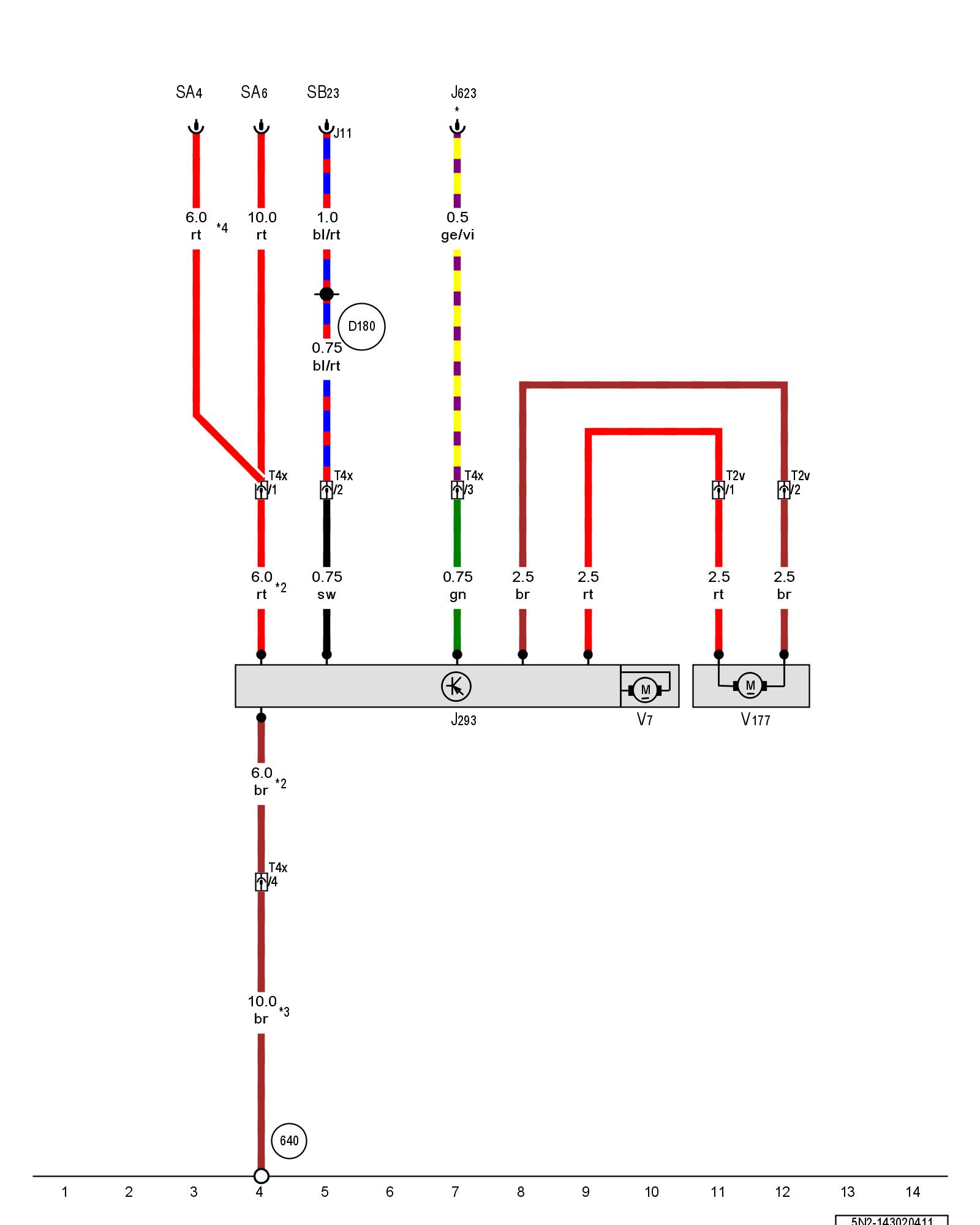

Diagram 143/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Coolant fan control module, Coolant fan, Coolant fan 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J293 - Coolant fan control module Control Modules in Engine Compartment

J623 - Engine control module Control Modules in Engine Compartment

SA4 - Fuse 4 (on fuse panel A) Overview Of Fuses

SA6 - Fuse 6 (on fuse panel A) Overview Of Fuses

SB23 - Fuse 23 (on fuse panel B) Overview Of Fuses

T2v - Double connector

T4x - 4-pin connector Component Locations

V7 - Coolant fan Locations

V177 - Coolant fan 2 Locations

(640) - Ground connection 2 in engine compartment, left Overview Of Ground Connections in Engine Compartment

(D180) - Connection (87a) (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram

*2 - 4.0 diameter possible

*3 - 6,0 diameter possible

*4 - Only for vehicles with a 2.0L engine
