Diagram 136/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

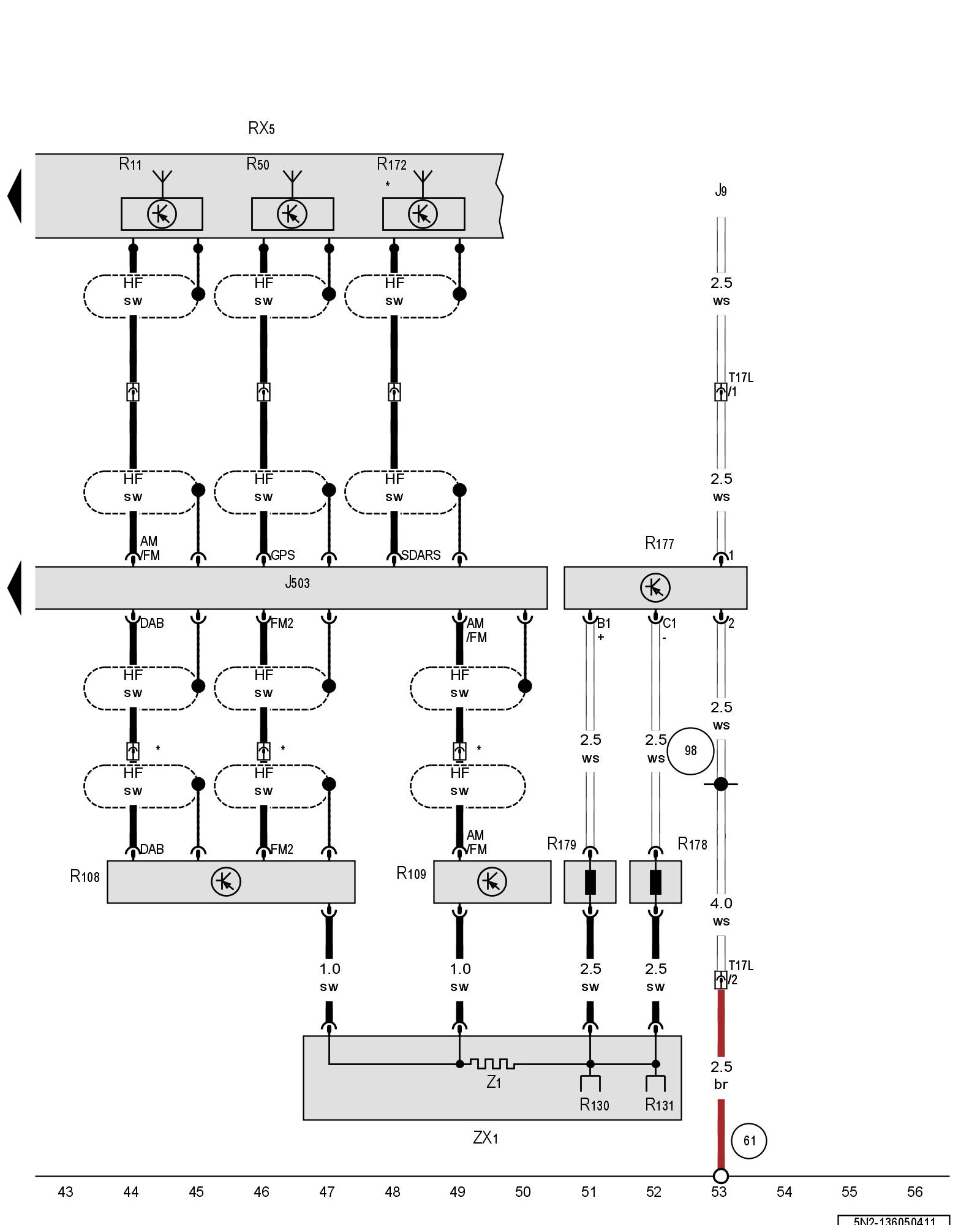

Radio/navigation display unit control module, Antenna, Right antenna module, Rear window, Rear window defogger





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J9 - Rear window defogger relay

J503 - Radio/navigation display unit control module Control Modules in Pass Compartment Radio Systems Overview

RX5 - Roof antenna Radio Systems Overview

R11 - Antenna Radio Systems Overview

R50 - GPS antenna Radio Systems Overview

R108 - Left antenna module

R109 - Right antenna module

R130 - Rear window antenna 1 Radio Systems Overview

R131 - Rear window antenna 2

R172 - Satellite tuner antenna Radio Systems Overview

R177 - AM frequency filter Radio Systems Overview

R178 - FM frequency filter in negative wire Radio Systems Overview

R179 - FM frequency filter in positive wire Radio Systems Overview

T1 - Single connector

T1c - Single connector Component Locations

T1e - Single connector Component Locations

T1j - Single connector Component Locations

T2za - Double connector

T17L - 17-pin connector Component Locations

ZX1 - Rear window

Z1 - Rear window defogger

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Luggage Comp.

(98) - Ground connection (in rear lid wiring harness)

* - Depending on equipment

Previous Diagram 136/4 (Tracks 29-42)
