Diagram 137/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

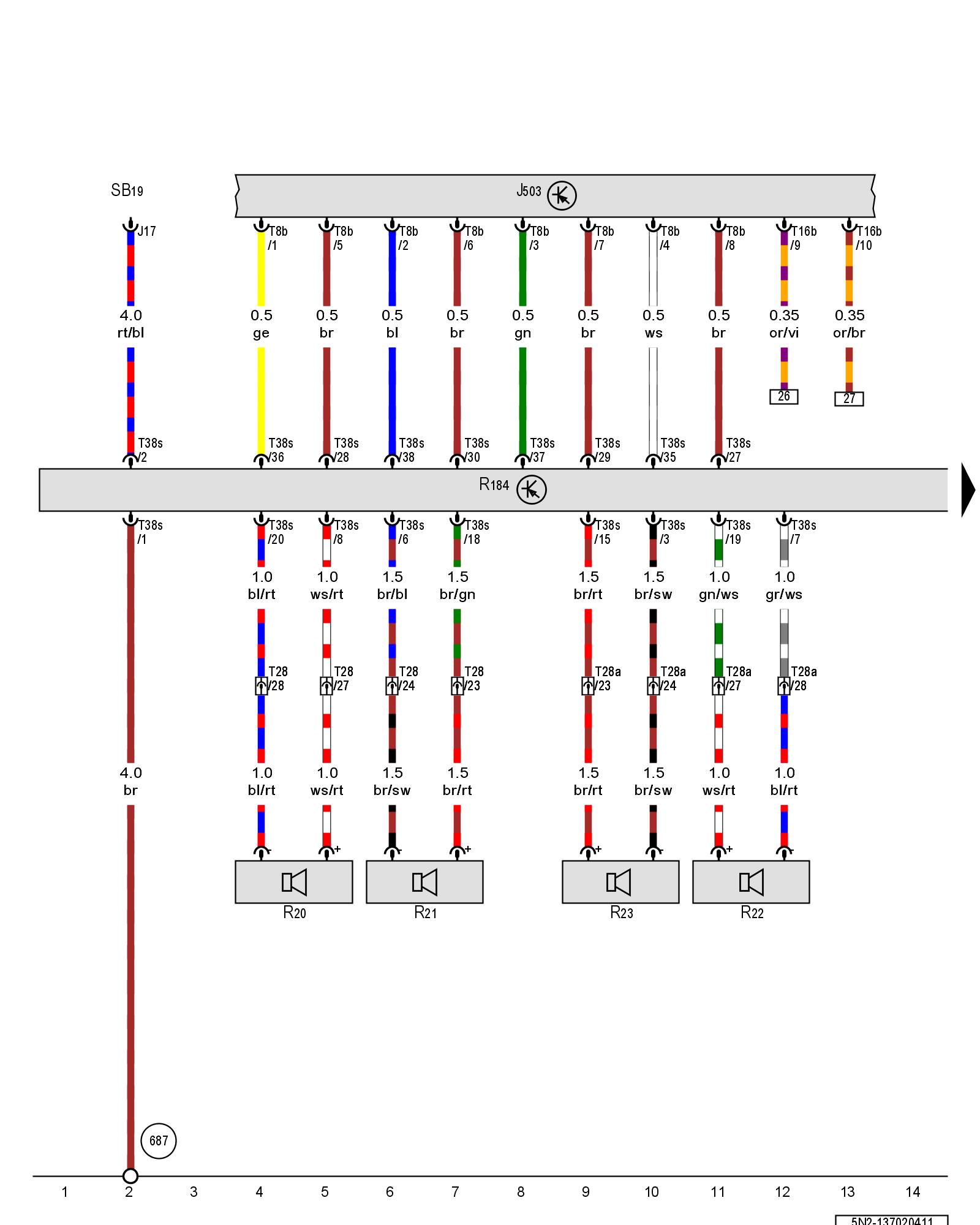

Radio/navigation display unit control module, Left front treble speaker, Left front bass speaker, Right front treble speaker, Right front bass speaker, Digital sound system amplifier





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module Control Modules in Pass Compartment Radio Systems Overview

R20 - Left front treble speaker Radio Systems Overview

R21 - Left front bass speaker Radio Systems Overview

R22 - Right front treble speaker Radio Systems Overview

R23 - Right front bass speaker Radio Systems Overview

R184 - Digital sound system amplifier, under the driver seat Control Modules in Pass Compartment

SB19 - Fuse 19 (on fuse panel B) Overview Of Fuses

T8b - 8-pin connector

T16b - 16-pin connector

T28 - 28-pin connector Component Locations

T28a - 28-pin connector Component Locations

T38s - 38-pin connector

(687) - Ground connection 1 on center tunnel

Next Diagram 137/3 (Tracks 15-28)
