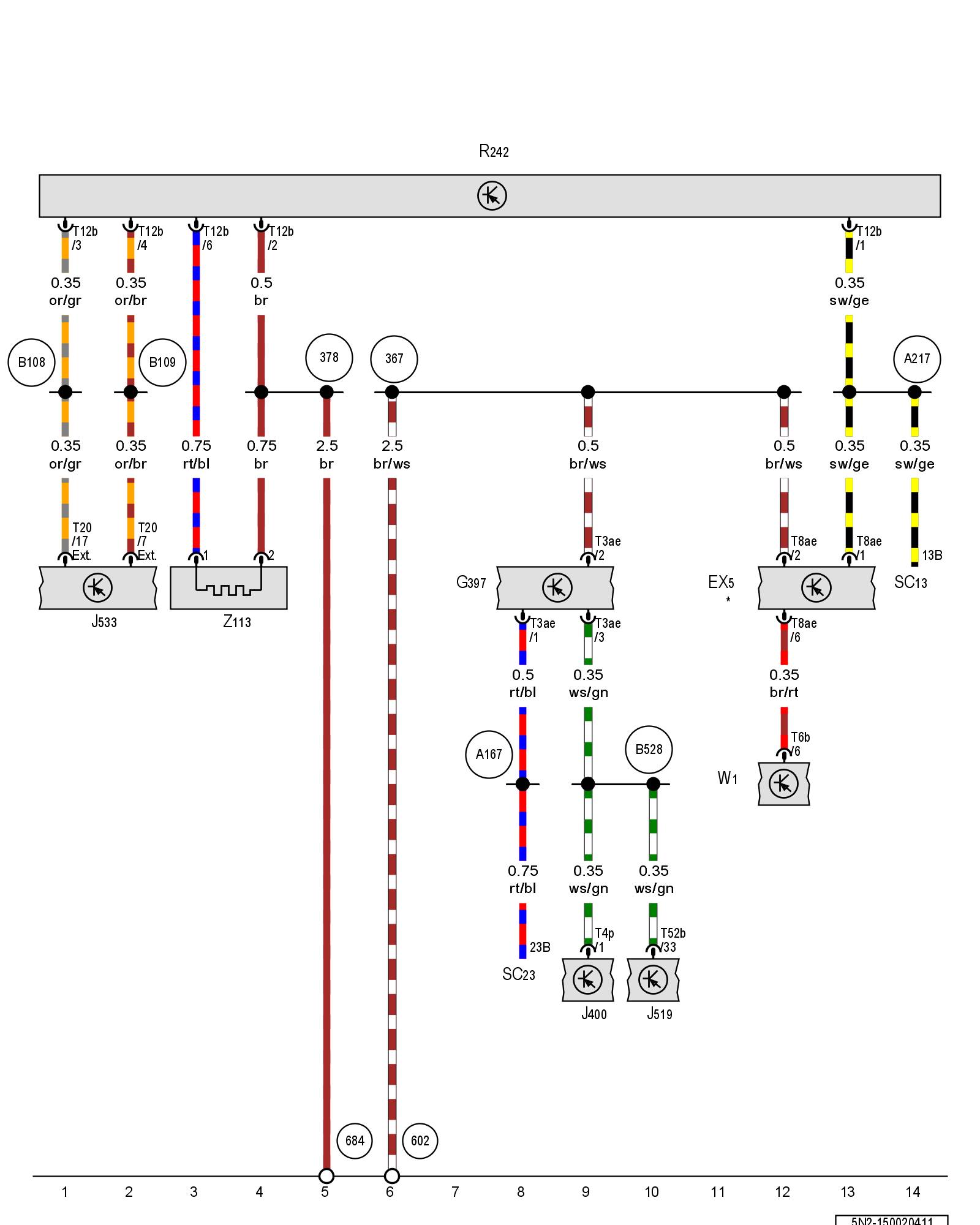

Diagram 150/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver assistance systems front camera, Window defogger for front sensor system





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

EX5 - Interior rearview mirror

G397 - Rain/light recognition sensor Locations

J400 - Wiper motor control module Control Modules in Engine Compartment

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

J533 - Data bus on board diagnostic interface Control Modules in Pass Compartment

R242 - Driver assistance systems front camera Control Modules in Pass Compartment

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses

SC23 - Fuse 23 (on fuse panel C) Overview Of Fuses

T3ae - 3-pin connector Component Locations

T4p - 4-pin connector

T6b - 6-pin connector Component Locations

T8ae - 8-pin connector

T12b - 12-pin connector

T20 - 20-pin connector

T52b - 52-pin connector

W1 - Front interior lamp

Z113 - Window defogger for front sensor system

(367) - Ground connection 2 (in main wiring harness)

(378) - Ground connection 13 (in main wiring harness)

(602) - Ground connection in left front footwell Overview Of Ground Connections in Rear Seats

(684) - Ground connection on left front side member Overview Of Ground Connections in Rear Seats

(A167) - Positive connection 3 (30a) (in instrument panel wiring harness)

(A217) - Positive connection 8 (15a) (in instrument panel wiring harness)

(B108) - CAN bus extended high connection 1 (in main wiring harness)

(B109) - CAN bus extended low connection 1 (in main wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)

* - Depending on equipment
