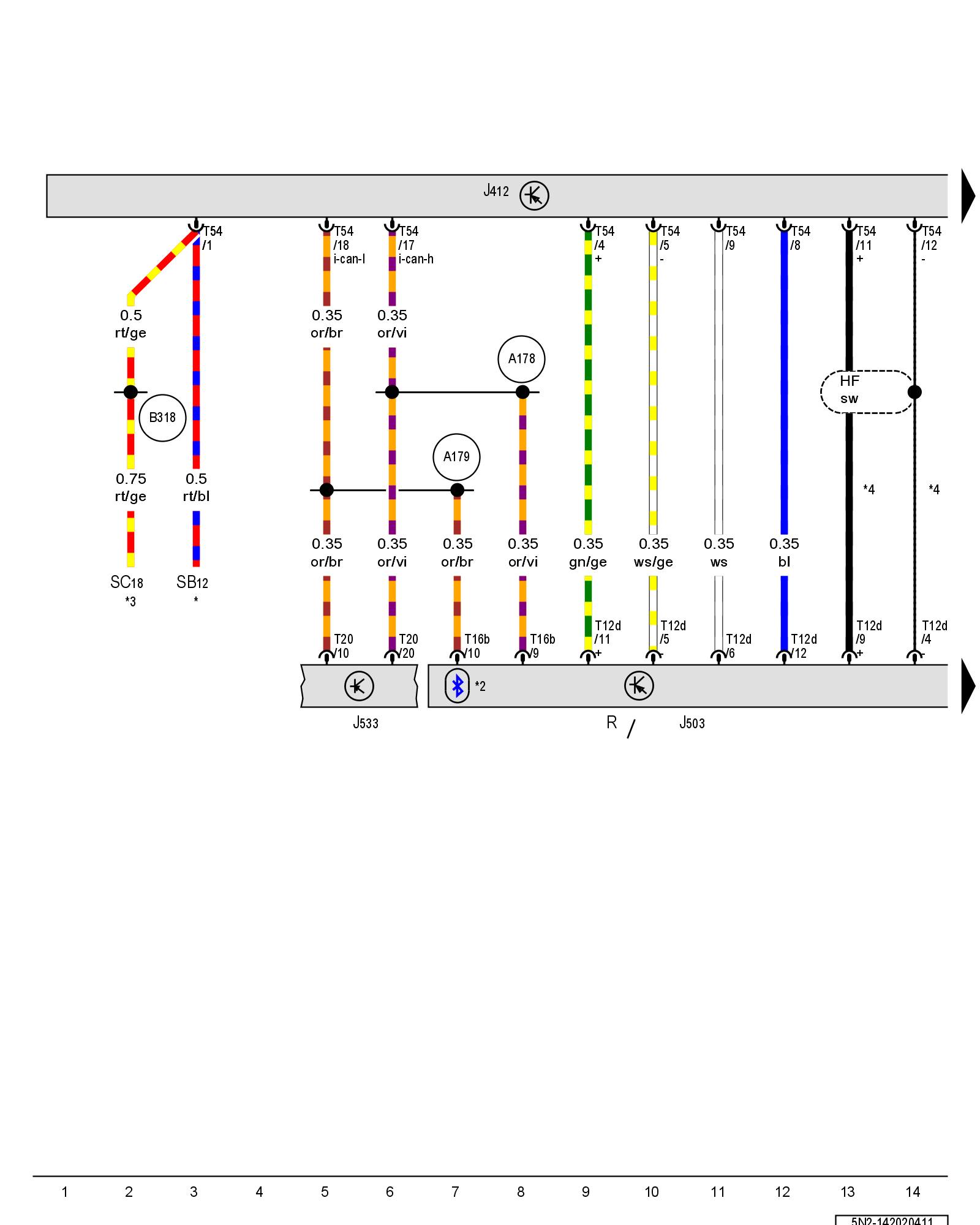

Diagram 142/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Cell phone operating electronics control module, Radio/navigation display unit control module, Radio, Fuse 12 (on fuse panel B)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J412 - Cell phone operating electronics control module Control Modules in Pass Compartment

J503 - Radio/navigation display unit control module Control Modules in Pass Compartment Radio Systems Overview

J533 - Data bus on board diagnostic interface Control Modules in Pass Compartment

R - Radio Control Modules in Pass Compartment

SB12 - Fuse 12 (on fuse panel B) Overview Of Fuses

SC18 - Fuse 18 (on fuse panel C) Overview Of Fuses

T12d - 12-pin connector

T16b - 16-pin connector

T20 - 20-pin connector

T54 - 54-pin connector

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

(B318) - Positive connection 4 (30a) (in main wiring harness)

* - Only for vehicles without Start/Stop system

*2 - Depending on equipment

*3 - Only for vehicles with Start/Stop system

*4 - Only for vehicles with radio navigation system

Next Diagram 142/3 (Tracks 15-28)
