Trailer Hitch

Trailer Hitch

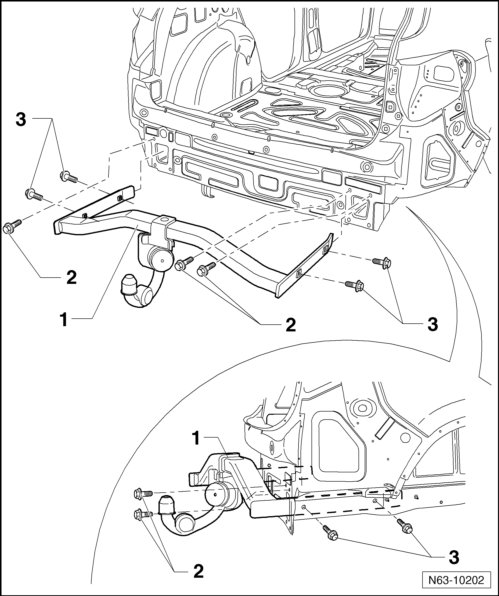

Removing

• The tightening specifications only apply to factory-installed trailer hitches.

• Obtain tightening specifications of other tow hitches from corresponding manufacturer.

• Electrical information can be found under. Refer to repair information Wiring Diagram Trailer Operation.

• The bolts - 2 - are not loosened.





- Remove bumper cover. Refer to => [ Rear Bumper Cover with Trailer Hitch ] Rear Bumper Cover with Trailer Hitch.

- Disconnect the electrical connector leading to the vehicle.

- Remove the bolts - 3 -.

- Pull the trailer hitch - 1 - evenly.


Bolts - 3 - must always be replaced after loosening.

Installation






To install, perform the steps used for removal in reverse order.

- Screw tightening specification - 2 -: 20 Nm.


Bolts - 2 - are sealing threaded connections and seal the interior from exhaust gases and must be installed in any case.

- Make sure the bolts - 3 - fit securely.

- Tightening specification for bolts - 3 -: 50 Nm + rotate an additional 90°.

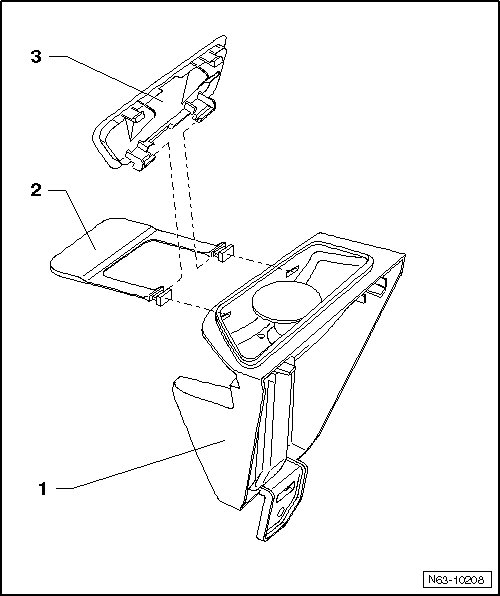

Release Knob Bracket, Assembly Overview






1 Release knob bracket

• Cannot be changed individually

2 Strap

• Removing:

- Remove the bumper cover together with the trailer hitch. Refer to => [ Rear Bumper Cover with Trailer Hitch ] Rear Bumper Cover with Trailer Hitch

- Remove the retaining strap from the side cap

- Pull the retaining strap through the bracket

3 Cover

• The bumper cover is not removed

• Removing:

- Remove the retaining strap from the side cap
