Rear Bumper Cover, Trailer Hitch, USA, Assembly Overview

Trailer Hitch, USA, Assembly Overview

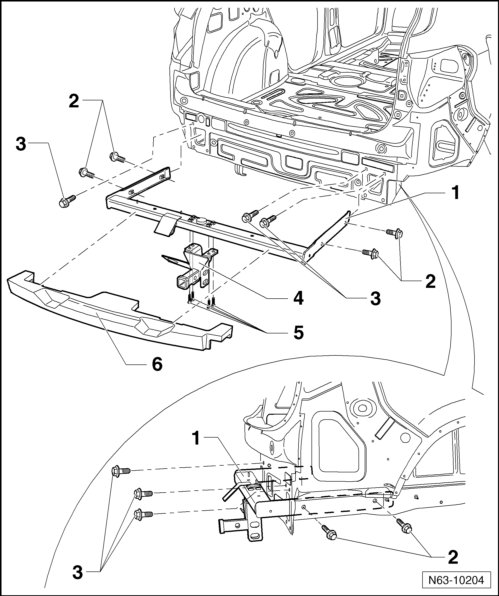

1 Trailer hitch

2 Bolt

• 2 pieces per side

• Tightening specification: 50 Nm + 90°


Bolts - 2 - must always be replaced after loosening.

3 Bolt

• Sealing threaded connections

• Quantity: 3

• Tightening specification: 20 Nm


Bolts - 3 - are sealing threaded connections and seal the interior from exhaust gases and must be installed in any case.

4 Bracket

• Mount the bracket only after the bumper cover is installed

5 Bolt

• Quantity: 4

• Tightening specification: 80 Nm

6 Foam piece

• Secured to bumper carrier with double-sided adhesive tape.
