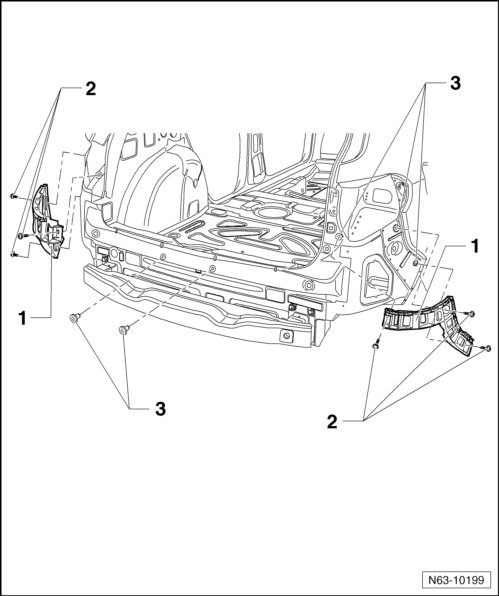

Rear Bumper Cover, Rear Bumper Cover Substructure

Rear Bumper Cover Substructure






1 Guide trim

• Left and right

2 Screws

• 3 pieces per side

• Tightening specification: 3.5 Nm

3 Expanding nut

• Quantity: 8
