Rear Bumper Cover, Rear Bumper Carrier, Assembly Overview

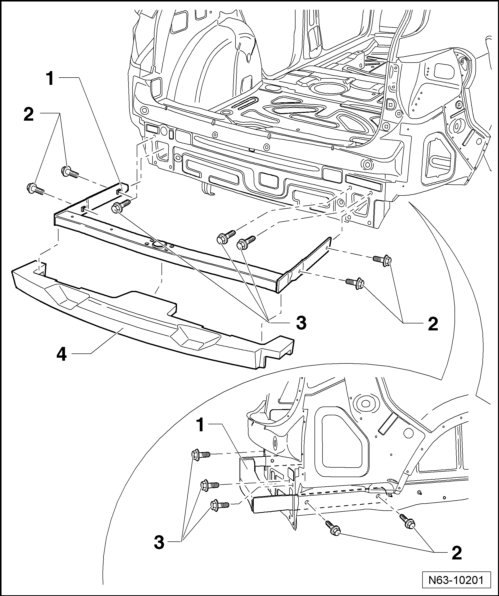

Rear Bumper Carrier, Assembly Overview






1 Rear bumper carrier

2 Bolt

• 2 pieces per side

• Tightening specification: 20 Nm

3 Bolt

• Sealing threaded connections

• Quantity: 1 on left

• Quantity: 2 on right

• Tightening specification: 20 Nm


Bolts - 3 - are sealing threaded connections and seal the interior from exhaust gases and must be installed in any case.

4 Bolt

• Quantity: 1 on left

• Quantity: 2 on right

• Tightening specification: 20 Nm

5 Foam piece

• Secured to bumper carrier with double-sided adhesive tape.
