Trailer Hitch, Assembly Overview

Trailer Hitch, Assembly Overview

• Only the cap the retaining strap on the release knob bracket are interchangeable.

• The other parts of the manually swiveling trailer hitch are not interchangeable.

• If any individual parts are damaged, then replace the complete trailer hitch.

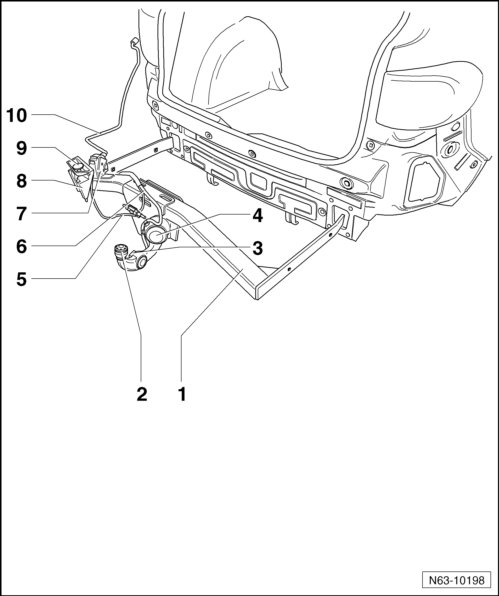

1 Trailer Hitch

• Trailer hitch with manual swiveling ball head - 2 - is depicted.

2 Ball head

• Swiveling

3 Power outlet

4 Swiveling mechanism

5 Release cable

• From the release lever to the swiveling mechanism

6 Wiring harness

7 Transmission

8 Release knob bracket

• With LED for the lock display

9 Release knob

10 Wiring harness

• To the vehicle
