Version 2

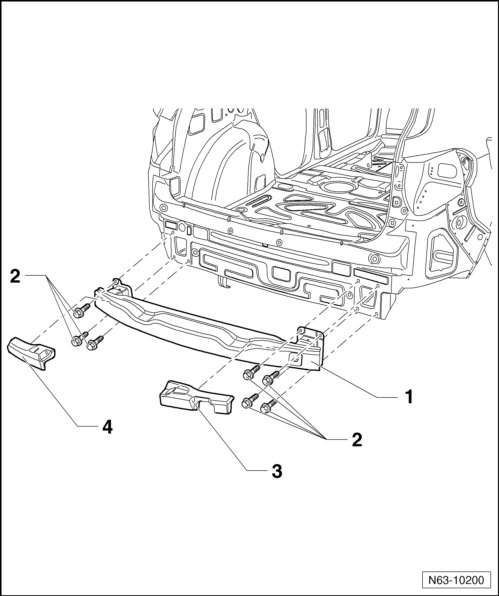

Rear Bumper Cover, Assembly Overview






1 Rear bumper carrier

2 Bolt

• Quantity: 3 on left

• Quantity: 4 on right

• Tightening specification: 20 Nm

3 Right foam piece

• Secured to bumper carrier with double-sided adhesive tape.

4 Left foam piece

• Secured to bumper carrier with double-sided adhesive tape.
