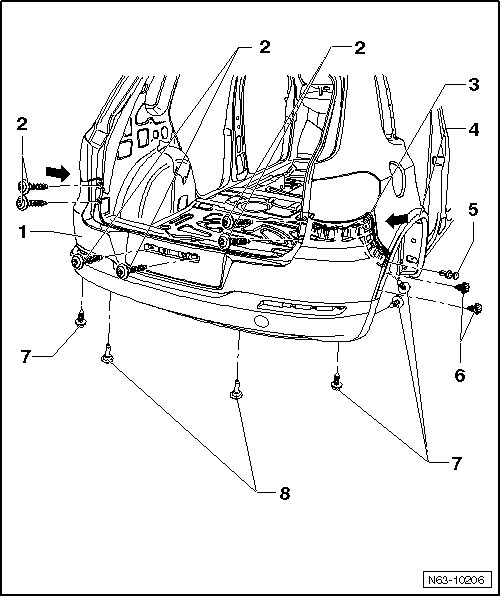

Rear Bumper Cover, Assembly Overview






1 Rear Bumper Cover

• PP/EPDM material

• Removing and installing, refer to => [ Rear Bumper Cover ] Rear Bumper Cover

• Removing and Installing with Trailer Hitch, refer to => [ Rear Bumper Cover with Trailer Hitch ] Rear Bumper Cover with Trailer Hitch

2 Bolt

• Quantity: 6

• Tightening specification: 3.5 Nm

3 Guide trim

- The bumper is engaged with the guide profile

4 Wheel cover

5 Expanding rivet

• Left and right

6 Catches

• To the wheel cover

• Must be loosened in order to remove the bumper

7 Bolt

• For the wheel housing liner

• Tightening specification: 2 Nm

8 Bolt

• Quantity: 2

• Tightening specification: 6 Nm
