Rear Bumper Cover Attachments

Rear Bumper Cover Attachments

• Depending on model version, slight deviations for attachments must be considered.

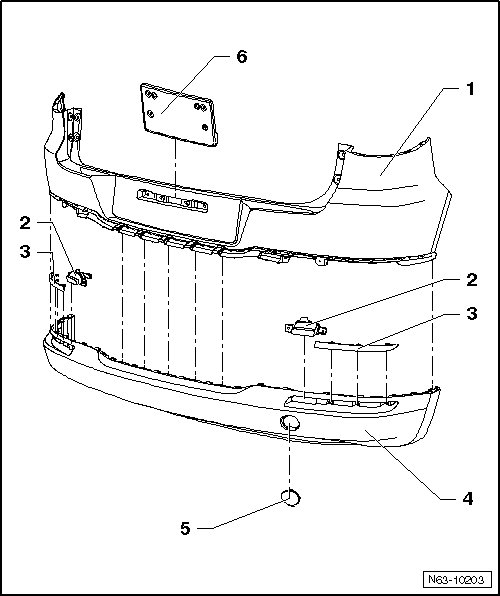

Accessories






1 Rear Bumper Cover

• PP/EPDM material

• Removing and installing, refer to => [ Rear Bumper Cover ] Rear Bumper Cover

• Removing and Installing with Trailer Hitch, refer to => [ Rear Bumper Cover with Trailer Hitch ] Rear Bumper Cover with Trailer Hitch

2 Back-up lights

• Remove only when bumper cover - 1 - has been removed.

3 Rear reflector

• Remove only when bumper cover - 1 - has been removed.

• Bolted in the rear bumper cover - 1 - from the inside.

4 Spoiler

• Material PC/ABS

• Engaged in rear bumper cover - 1 -.

• Remove only when bumper cover - 1 - has been removed.

5 Towing eyelet cap

• Engaged in rear bumper cover - 1 -.

6 License plate bracket

• Not for all countries

• bolted together with the bumper cover

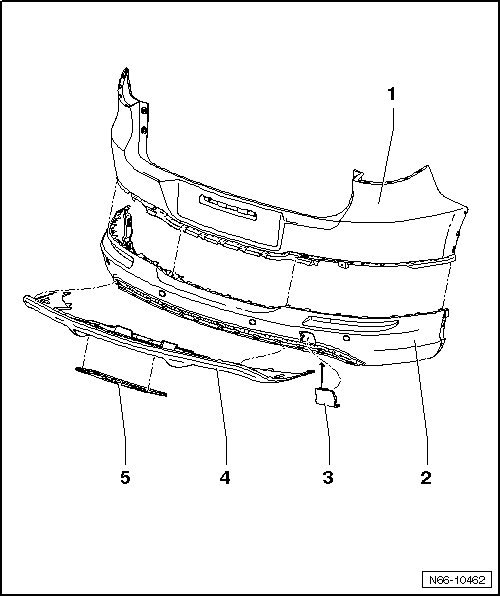

R-Line Accessories






1 Rear Bumper Cover

• PP/EPDM material

• Removing and installing, refer to => [ Rear Bumper Cover ] Rear Bumper Cover

• Removing and Installing with Trailer Hitch, refer to => [ Rear Bumper Cover with Trailer Hitch ] Rear Bumper Cover with Trailer Hitch

2 Spoiler

• Material PC/ABS

• Engaged in rear bumper cover - 1 -.

• Remove only when bumper cover - 1 - has been removed.

3 Towing eyelet cap

• Engaged in rear bumper cover - 1 -.

4 Diffuser

• In textured paint black

• Engaged in rear bumper cover - 1 -.

• Remove only when bumper cover - 1 - has been removed.

5 Cover

• For the trailer hitch
