After July 2011

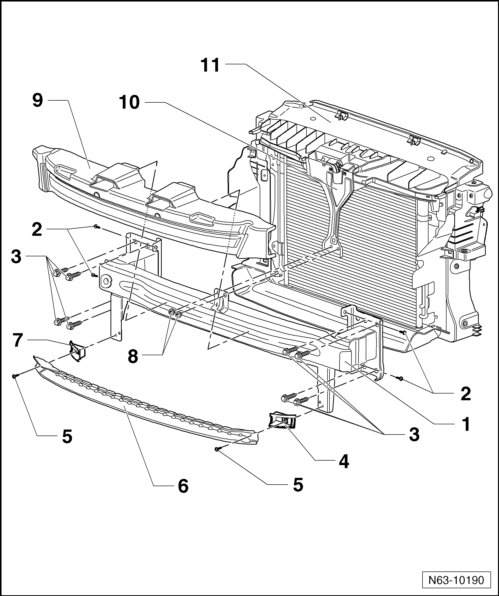

Front Bumper Cover, Assembly Overview

• The bumper carriers cannot be interchanged between the street version and off-road version.





1 Front bumper carrier

2 Bolt

• Left and right

• 2 pieces per side

• Tightening specification: 8 Nm

3 Bolt

• Quantity: 8

• Tightening specification: 60 Nm

4 Angle bracket

5 Bolt

• Quantity: 2

• Tightening specification: 8 Nm

6 Cross member

• Pedestrian protection, not applicable in all countries

• Is bolted to bumper carrier

7 Angle bracket

8 Bolt

• Quantity: 2

• Tightening specification: 8 Nm

9 Foam piece

• Self-adhesive

10 Lock support

11 Lock carrier
