After July 2011

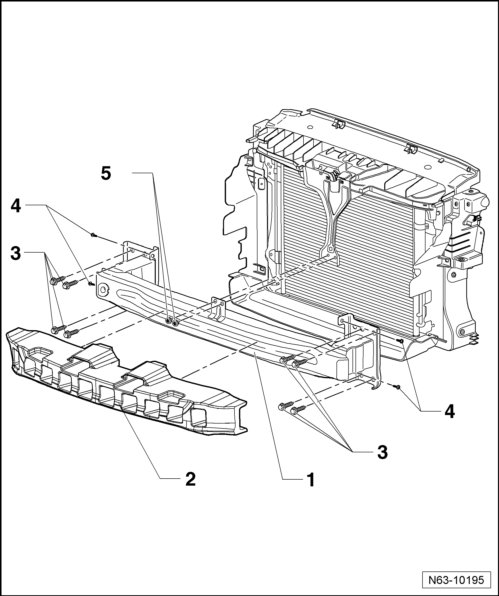

Front Bumper Cover, Assembly Overview

• The bumper carriers cannot be interchanged between the street version and off-road version.





1 Front bumper carrier

2 Foam piece

• Self-adhesive

3 Bolt

• 4 pieces per side

• Tightening specification: 60 Nm

4 Bolt

• 2 pieces per side

• Tightening specification: 3.5 Nm

5 Bolt

• Quantity: 2

• Tightening specification: 8 Nm
