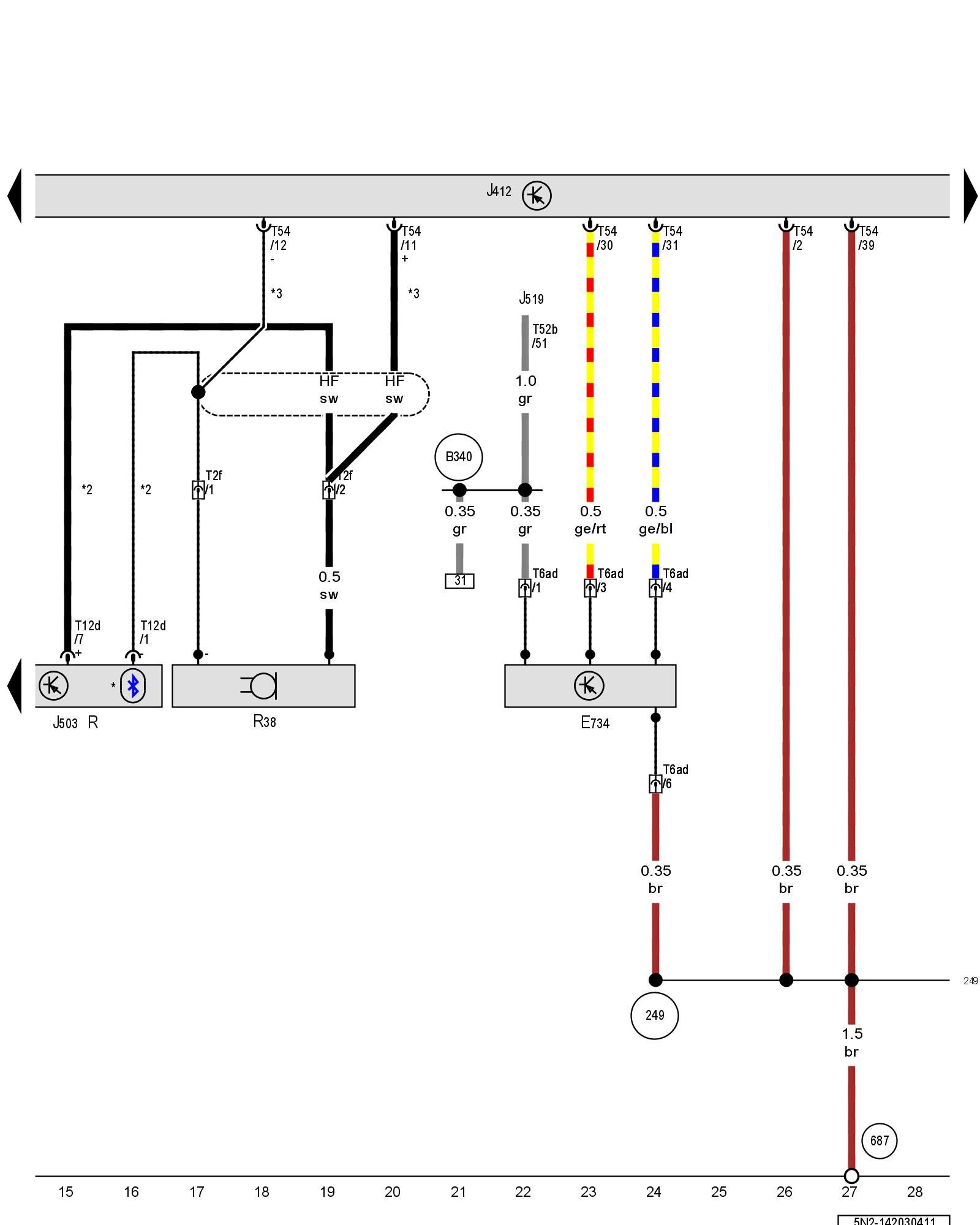

Diagram 142/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telematics button module, Cell phone operating electronics control module, Radio/navigation display unit control module, Vehicle electrical system control module, Radio, Telephone microphone





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E734 - Telematics button module

J412 - Cell phone operating electronics control module Control Modules in Pass Compartment

J503 - Radio/navigation display unit control module Control Modules in Pass Compartment Radio Systems Overview

J519 - Vehicle electrical system control module Control Modules in Pass Compartment

R - Radio Control Modules in Pass Compartment

R38 - Telephone microphone Radio Systems Overview

T2f - Double connector Component Locations

T6ad - 6-pin connector Component Locations

T12d - 12-pin connector

T52b - 52-pin connector

T54 - 54-pin connector

(249) - Ground connection 2 (in interior wiring harness)

(687) - Ground connection 1 on center tunnel

(B340) - Connection 1 (58d) (in main wiring harness)

* - Depending on equipment

*2 - Only for vehicles with radio navigation system

*3 - Only for vehicles without a radio navigation system

Previous Diagram 142/2 (Tracks 1-14)

Next Diagram 142/4 (Tracks 29-42)
