Transmission Gears Overview

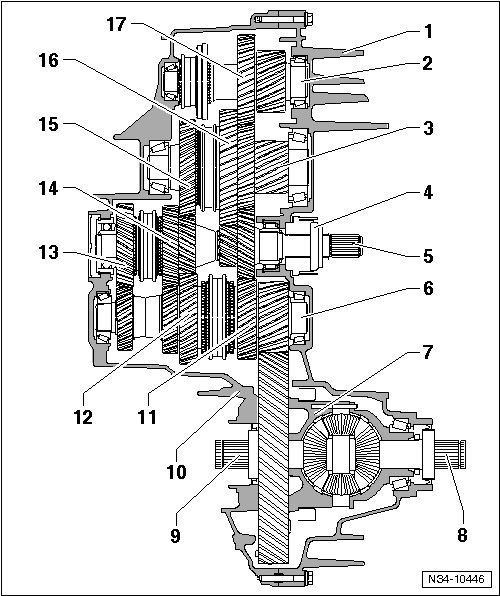

Transmission Gears Overview






1 Clutch Housing

2 Reverse Gear Output Shaft

3 1st and 2nd Gear Output Shaft

4 Clutch Slave Cylinder with Release Bearing

5 Input Shaft

• With selector gears for 5th and 6th gear.

6 3rd and 4th Gear Output Shaft

7 Differential

8 Right Stub Shaft

9 Left Stub Shaft

10 Transmission Housing

11 4th Gear

12 3rd Gear

13 6th Gear

14 5th Gear

15 2nd Gear

16 1st Gear

17 Reverse Gear
