Relay Assignment On E-box Low, from May 2011

Relay

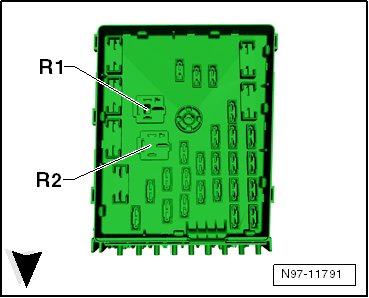

Relay assignment on E-box low, from May 2011







R1 - Motronic engine control module power supply relay 2 -J670-
• Only for vehicles with a 2.0L gasoline engine

R1 - Auxiliary coolant pump relay -J496-
• Only for vehicles with a 1.4L gasoline engine (engine code CAXA)

R1 - Connection bridge
• Only vehicles with a diesel engine

R2 - Terminal 30 power supply relay -J317-

Back to overview => [ ] Relay Carrier Overview
