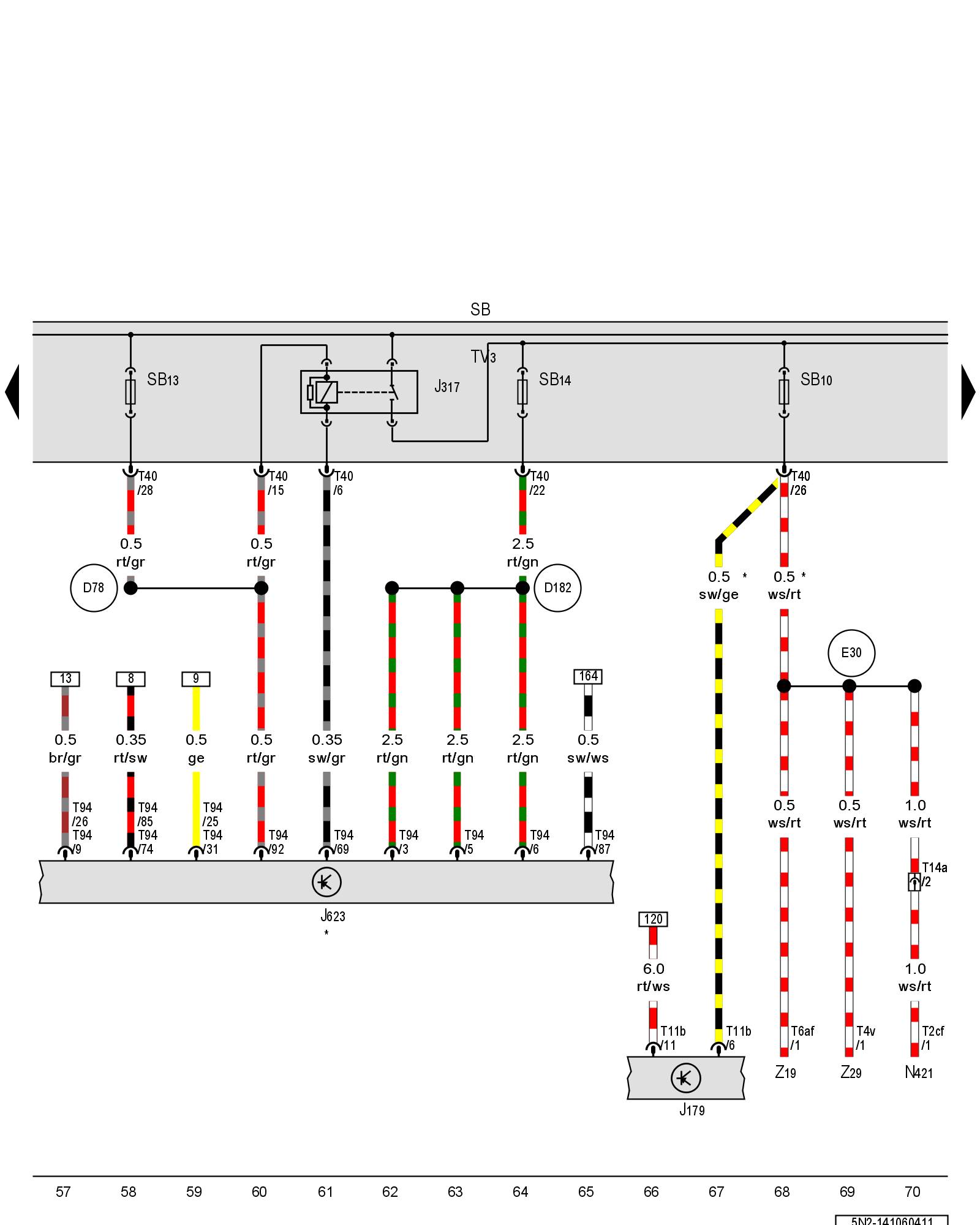

Diagram 141/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 30 power supply relay, Fuse panel B, Terminal 30a wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J179 - Automatic glow time control module Control Modules in Engine Compartment

J317 - Terminal 30 power supply relay Relay Carrier Overview

J623 - Engine control module Control Modules in Engine Compartment

N421 - Compressor magnetic clutch

SB - Fuse panel B Overview Of Fuses

SB10 - Fuse 10 (on fuse panel B) Overview Of Fuses

SB13 - Fuse 13 (on fuse panel B) Overview Of Fuses

SB14 - Fuse 14 (on fuse panel B) Overview Of Fuses

T2cf - Double connector

T4v - 4-pin connector

T6af - 6-pin connector

T11b - 11-pin connector

T14a - 14-pin connector Component Locations

TV3 - Terminal 30a wire junction

T40 - 40-pin connector

T94 - 94-pin connector

Z19 - Oxygen sensor heater Locations Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

Z29 - Heater for oxygen sensor 1 after catalytic converter Locations Oxygen Sensor and Heater After Three way Catalytic Converter -G130- / -Z29-

(D78) - Positive connection 1 (30a) (in engine compartment wiring harness)

(D182) - Connection 3 (87a) (in engine compartment wiring harness)

(E30) - Connection (87a) (in engine wiring harness)

* - Refer to applicable engine wiring diagram
